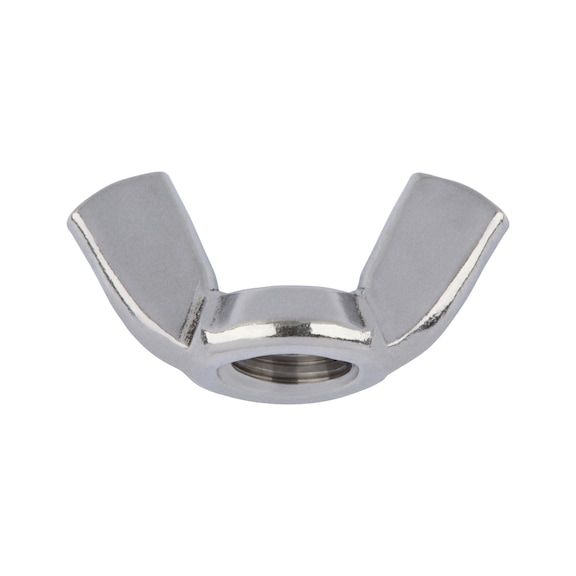

Wing Nut A4 Stainless Steel | Edged Wing Shape | M5 Thread | Plain Finish | @Pack of 10 | by Wurth
Wing Nut A4 Stainless Steel with M5 thread and edged wing shape—ideal for mechanical fastening in machinery and equipment. Built for easy manual tightening, this RoHS-compliant nut ensures excellent corrosion resistance, making it perfect for environments requiring durability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Nut A4 Stainless Steel | Edged Wing Shape | M5 Thread | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 340035
Alternatively Known As: Wing nut M5 stainless steel, American type wing nut, A4 stainless steel wing nut, manual wing nut fastener

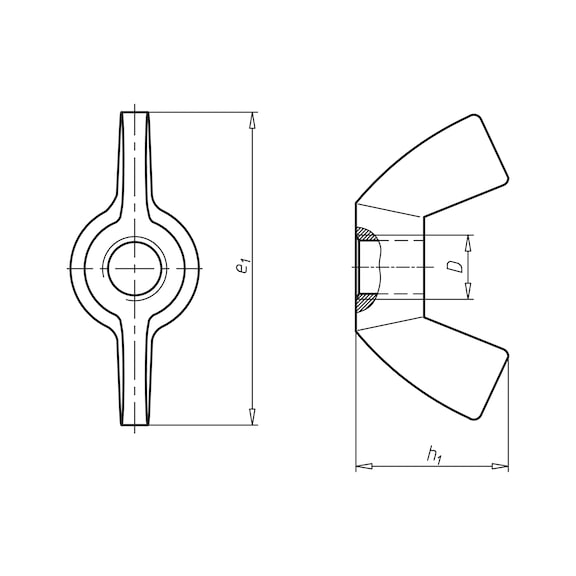

Technical Specifications
- Standard: DIN 314 similar
- Material: Stainless steel A4
- Surface: Plain
- Form: American type edged wing shape
- Thread type x nominal diameter: M5 metric thread
- Wing height (h1): 10 mm
- Width of wing on nut (e1): 22 mm
- Wing thickness: 2 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 10mm x 22mm
- Weight: 0.02 kg
Key Features
- Made from A4 stainless steel for excellent corrosion resistance
- Edged wing shape (American type) for easy manual tightening and loosening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- No professional installation required; designed for manual hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly of components requiring hand-tightening
- Use in environments requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Nut edged wing shape American type A4 stainless steel M5 is available for immediate purchase. Ideal for mechanical fastening and assembly applications requiring corrosion resistance.
