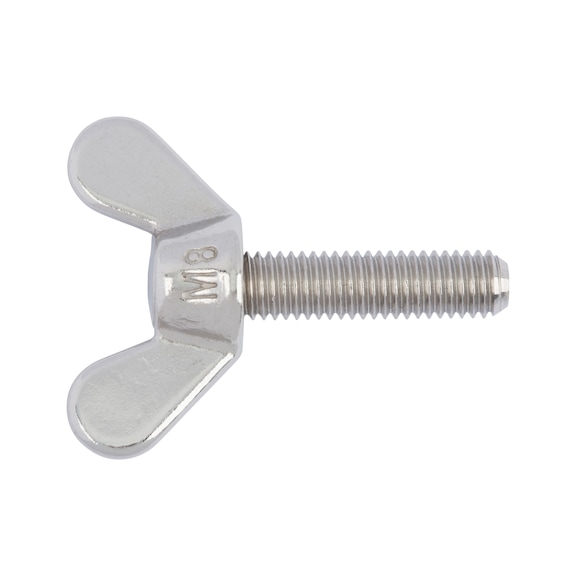

Wing Screw DIN 316 | A2 Stainless Steel | Hand-Operable Wing Head | Plain Finish | @Pack of 10 | by Wurth
Wing Screw DIN 316 made from A2 stainless steel offers exceptional corrosion resistance and durability. With a hand-operable wing head, it allows for easy tightening and loosening without tools, making it ideal for mechanical fastening in machinery and equipment. Perfect for applications requiring quick assembly and disassembly, this screw complies with DIN 316 standards and is designed for hand tightening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw DIN 316 | A2 Stainless Steel | Hand-Operable Wing Head | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 27281530
Alternatively Known As: Wing bolt, thumb screw, hand screw, wing nut screw
Technical Specifications
- Thread type x nominal diameter: M5
- Outer diameter: 11 mm
- Length: 30 mm
- Wing height: 13 mm
- Width of wing on nut: 26 mm
- Head height: 13 mm
- Material: Stainless steel A2
- Surface: Plain
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Forged
- Product class: C
- Dimensions (H x L x W): 13mm x 30mm x 26mm
- Weight: 0.05 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Forged design for durability
- Plain surface finish
- Hand-operable wing head for easy tightening and loosening
- Complies with DIN 316 standard
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in environments requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring corrosion resistance and easy hand operation.
