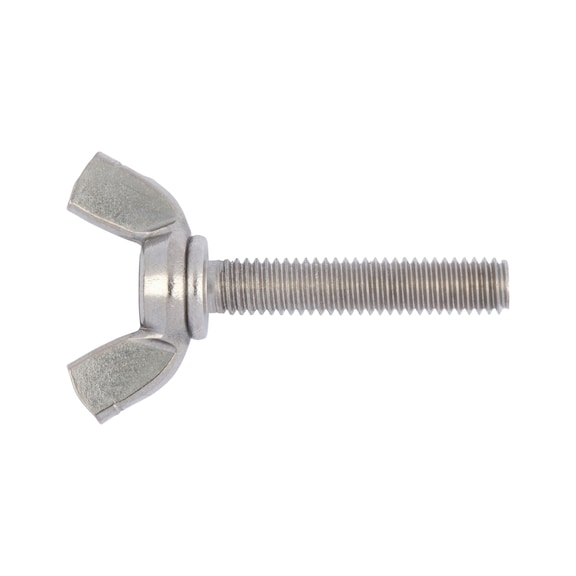

Wing Screw DIN 316 A4 Stainless Steel | Hand Tightening | Corrosion Resistant | @Pack of 10 | by Wurth
Wing Screw DIN 316 A4 Stainless Steel is designed for easy hand tightening, making it ideal for mechanical fastening in machinery and equipment. With excellent corrosion resistance and a pressed design, this screw is perfect for applications in corrosive environments, ensuring durability and reliability without the need for tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw DIN 316 A4 Stainless Steel | Hand Tightening | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 27794625
Alternatively Known As: Wing Screw, Wing Nut Screw, Hand Tightening Screw, DIN 316 Wing Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Outer diameter (d2): 12.7 mm
- Length (l1): 25 mm
- Wing height (h1): 13.6 mm
- Width of wing on nut (e2): 27.8 mm
- Standards: DIN 316
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Design: Pressed
- Dimensions (H x L x W): 13.6mm x 25mm x 27.8mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel A4 for excellent corrosion resistance
- Pressed design with square wings for easy hand tightening
- Complies with DIN 316 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- No special professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in corrosive environments due to stainless steel material
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and assembly applications requiring corrosion resistance.
