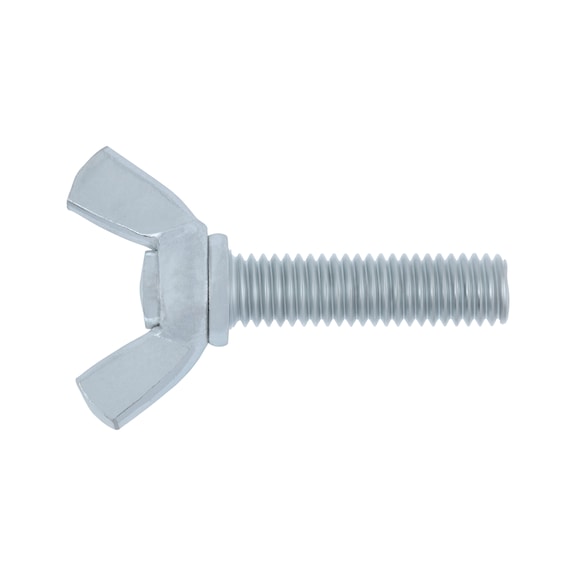

Wing Screw DIN 316 | Square Wings | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Wing Screw DIN 316 with square wings and zinc-plated blue passivation is perfect for mechanical assemblies requiring hand-tightened fasteners. Designed for easy manual tightening, this durable screw is ideal for equipment maintenance, furniture assembly, and electrical panel fastening. RoHS-compliant and built to DIN 316 standards, it ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw DIN 316 | Square Wings | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790525
Alternatively Known As: Wing nut screw, thumb screw, hand screw, manual wing bolt
Technical Specifications
- Thread type x nominal diameter: M5
- Outer diameter: 10.3 mm
- Length: 25 mm
- Wing height: 11 mm
- Width of wing on nut: 22.5 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 11mm x 25mm x 22.5mm
- Weight: 0.02 kg
Key Features
- Square wings for easy manual tightening and loosening
- Pressed design for durability
- Zinc-plated with blue passivation for corrosion resistance
- Complies with DIN 316 standard
- RoHS-compliant
Professional Installation Requirements
- No professional installation required; designed for manual hand tightening.
Applications
- Mechanical assemblies requiring hand-tightened fasteners
- Equipment and machinery maintenance
- Furniture assembly and repair
- Electrical panel fastening
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical and maintenance applications requiring manual fastening.
