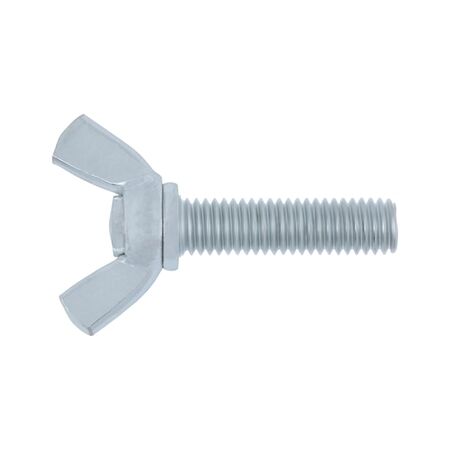

Wing Screw DIN 316 | Square Wings | Zinc-Plated Steel | Hand Drive | @Pack of 10 | by Wurth
Wing Screw DIN 316 with square wings and zinc-plated steel construction is perfect for mechanical fastening and assembly applications. Designed for easy hand tightening, this screw is ideal for use in machinery and equipment, ensuring durability and corrosion resistance. With a property class of 4.8, it meets high strength standards, making it a reliable choice for metalworking and construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw DIN 316 | Square Wings | Zinc-Plated Steel | Hand Drive | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790415
Alternatively Known As: Wing bolt, thumb screw, hand screw, wing nut screw
Technical Specifications
- Thread type x nominal diameter: M4
- Outer diameter: 9 mm
- Length: 15 mm
- Wing height: 8.6 mm
- Width of wing on nut: 17.6 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 8.6mm x 15mm x 17.6mm
- Weight: 0.02 kg
Key Features
- Square wings similar to DIN 316 standard
- Made from steel with property class 4.8 for strength
- Zinc-plated with blue passivation for corrosion resistance
- Pressed design for durability
- Hand drive type for easy manual tightening
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in metalworking and construction projects
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and assembly applications.
