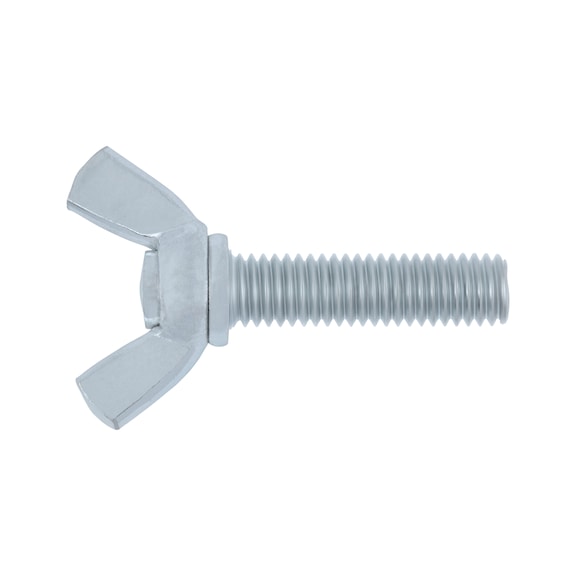

Wing Screw DIN 316 | Square Wings for Easy Hand Tightening | Zinc Plated & Blue Passivated | @Pack of 10 | by Wurth
Wing Screw DIN 316 features square wings for easy hand tightening and a durable pressed design, making it ideal for mechanical fastening in machinery and equipment. With a zinc plated and blue passivated finish, it offers excellent corrosion resistance and is perfect for assembly tasks that require hand-tightening without tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw DIN 316 | Square Wings for Easy Hand Tightening | Zinc Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790425
Alternatively Known As: Wing nut screw, hand screw wing, thumb screw wing nut, DIN 316 wing screw

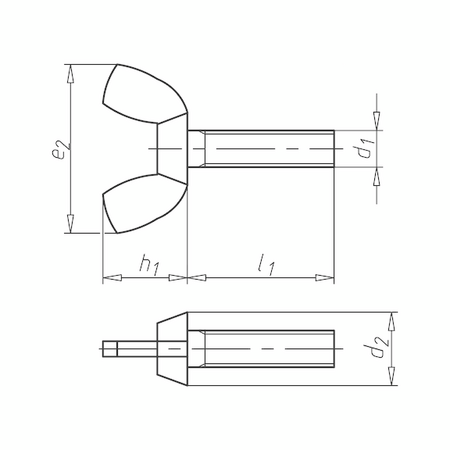

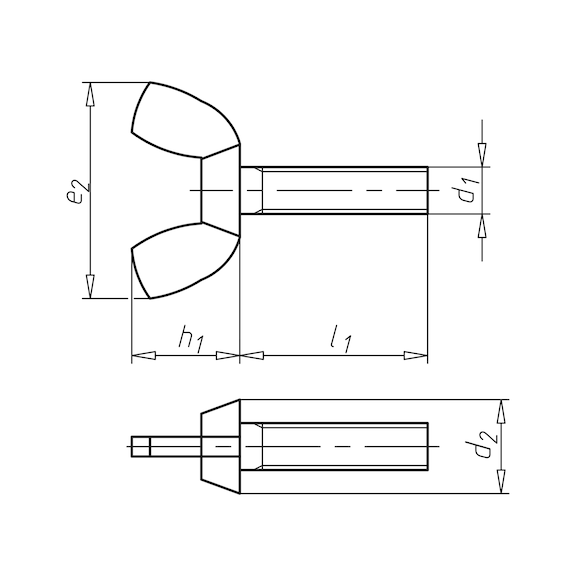

Technical Specifications
- Thread type x nominal diameter (d1): M4
- Outer diameter (d2): 9 mm
- Length (l1): 25 mm
- Wing height (h1): 8.6 mm
- Width of wing on nut (e2): 17.6 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 8.6mm x 25mm x 17.6mm
- Weight: 0.02 kg
Key Features
- Square wings for easy hand tightening
- Pressed design for durability
- Zinc plated with blue passivation for corrosion resistance
- Complies with DIN 316 standard
- RoHS-compliant
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in maintenance and repair tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and assembly applications.
