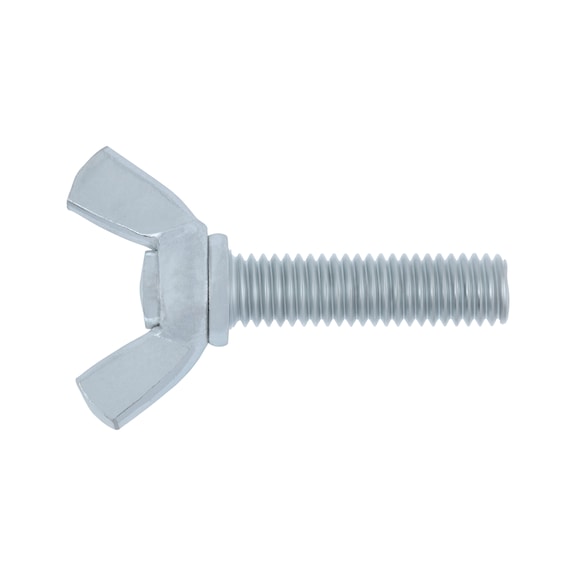

Wing Screw DIN 316 | Square Wings | Zinc-Plated & Corrosion Resistant | @Pack of 10 | by Wurth
Wing Screw DIN 316 with square wings and zinc-plated finish is perfect for mechanical fastening and assembly applications. Designed for easy manual tightening, this corrosion-resistant screw is ideal for metalworking and construction projects, ensuring durability and strength with its property class 4.8. No tools required, making it user-friendly for all.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw DIN 316 | Square Wings | Zinc-Plated & Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790430
Alternatively Known As: Wing bolt, thumb screw, hand screw, wing nut screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Outer diameter (d2): 9 mm
- Length (l1): 30 mm
- Wing height (h1): 8.6 mm
- Width of wing on nut (e2): 17.6 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated, blue passivated (A2K)
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 8.6mm x 30mm x 17.6mm
- Weight: 0.02 kg
Key Features
- Square wings similar to DIN 316 for easy manual tightening
- Made from steel with property class 4.8 for strength
- Zinc plated with blue passivation for corrosion resistance
- Pressed design for durability
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- No professional installation required; designed for manual hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in metalworking and construction projects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and assembly applications.
