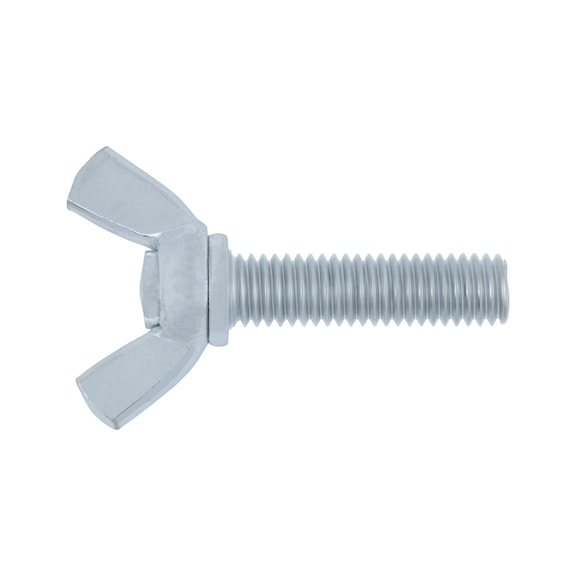

Wing Screw M5 | Square Wings DIN 316 | Zinc-Plated Steel 4.8 | @Pack of 10 | by Wurth
Wing Screw M5 with square wings and zinc-plated steel construction is perfect for mechanical fastening and maintenance tasks. Designed for easy hand-tightening without tools, this screw is ideal for applications requiring quick adjustments. With a property class of 4.8, it ensures strength and durability, making it a reliable choice for various machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw M5 | Square Wings DIN 316 | Zinc-Plated Steel 4.8 | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790535
Alternatively Known As: Wing bolt, thumb screw, hand screw, wing nut screw, manual wing screw
Technical Specifications

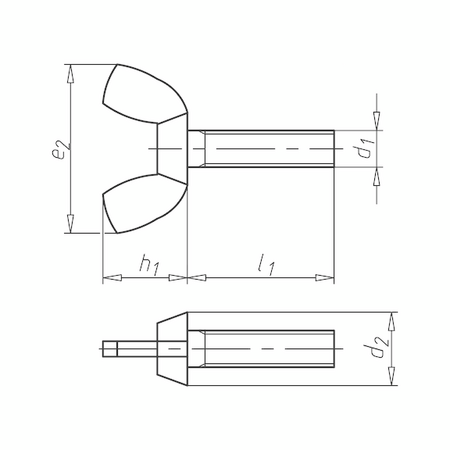

- Thread type x nominal diameter: M5
- Outer diameter: 10.3 mm
- Length: 35 mm
- Wing height: 11 mm
- Width of wing on nut: 22.5 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated, blue passivated (A2K)
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 11mm x 35mm x 22.5mm
- Weight: 0.05 kg
Key Features
- Square wings similar to DIN 316 for easy manual tightening
- Made from steel with property class 4.8 for strength
- Zinc-plated with blue passivation (A2K) for corrosion resistance
- Pressed design for durability and consistent quality
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- No special professional installation required; designed for hand tightening without tools.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in maintenance and repair tasks
- Suitable for applications needing quick and easy screw adjustment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Screw M5 Zinc Plated Steel 4.8, DIN 316, 10 PCS is available for immediate purchase. Ideal for mechanical fastening and maintenance applications.
