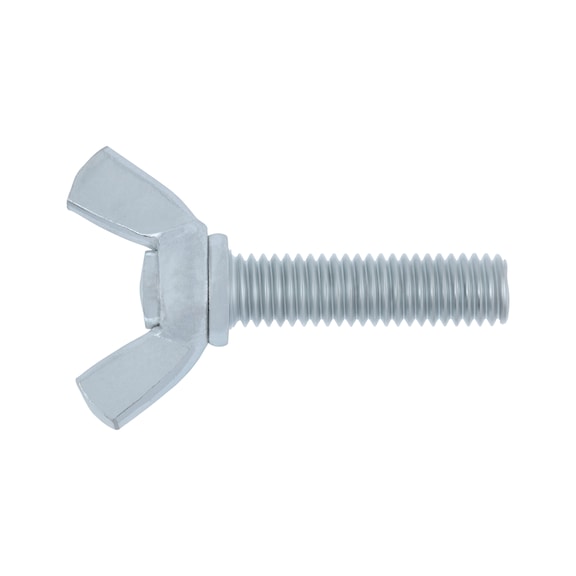

Wing Screw M5 | Square Wings DIN 316 | Zinc-Plated Steel | @Pack of 10 | by Wurth
Wing Screw M5 with square wings and zinc-plated steel finish — ideal for mechanical assemblies requiring hand-tightened fasteners. Built for DIY enthusiasts and professionals alike, this durable screw features a pressed design for strength and RoHS compliance for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw M5 | Square Wings DIN 316 | Zinc-Plated Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790510
Alternatively Known As: Wing nut screw, thumb screw, hand screw, manual wing bolt

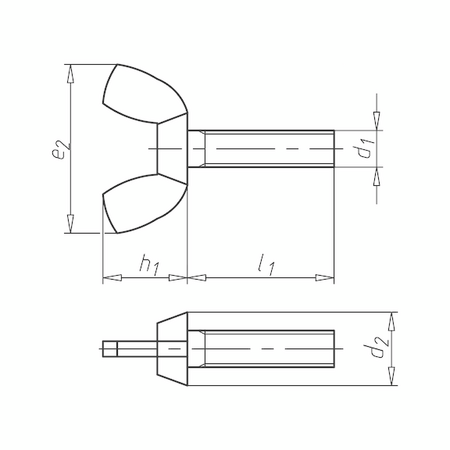

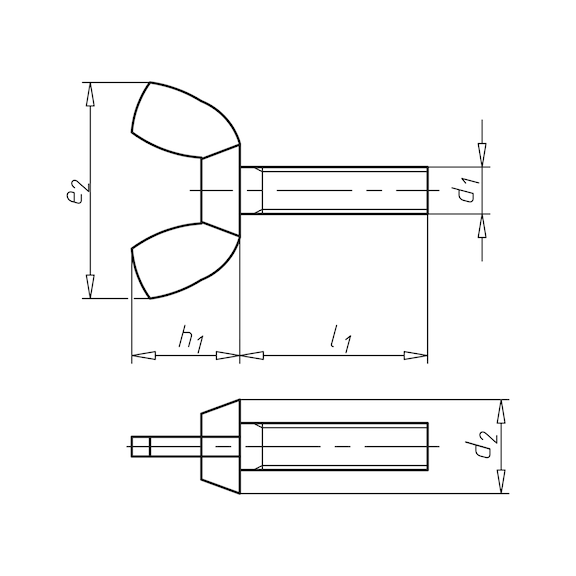

Technical Specifications
- Thread type x nominal diameter (d1): M5
- Outer diameter (d2): 10.3 mm
- Length (l1): 10 mm
- Wing height (h1): 11 mm
- Width of wing on nut (e2): 22.5 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 11mm x 10mm x 22.5mm
- Weight: 0.02 kg
Key Features
- Square wings similar to DIN 316 for easy manual tightening
- Pressed design for durability
- Zinc-plated with blue passivation for corrosion resistance
- Steel material with property class 4.8 for strength
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- No professional installation required; designed for manual hand tightening.
Applications
- Mechanical assemblies requiring hand-tightened fasteners
- Equipment and machinery where frequent adjustments or removals are needed
- DIY projects and repairs involving metric threaded components
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Screw M5 Zinc-Plated Steel DIN 316 Square Wings 10mm Length 10 PCS is available now for immediate purchase. Ideal for mechanical fastening and manual adjustment applications.
