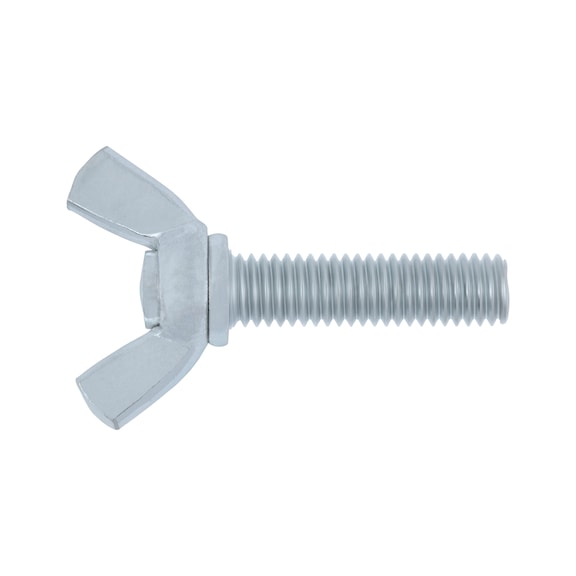

Wing Screw M5 | Square Wings DIN 316 | Zinc-Plated Steel | @Pack of 10 | by Wurth
Wing Screw M5 with square wings and zinc-plated steel construction is perfect for mechanical assemblies and DIY projects. Designed for easy hand tightening, this screw offers durability and corrosion resistance, making it ideal for equipment maintenance and furniture assembly. With RoHS compliance, it ensures environmental safety while providing reliable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw M5 | Square Wings DIN 316 | Zinc-Plated Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 23790515
Alternatively Known As: Wing nut screw, thumb screw, hand screw, manual wing bolt

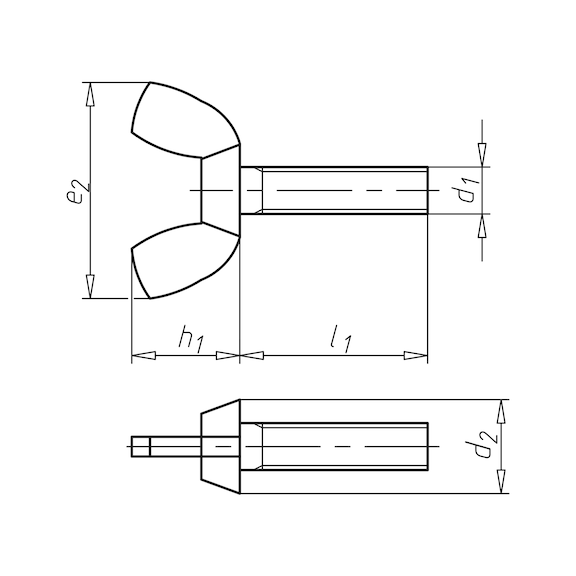

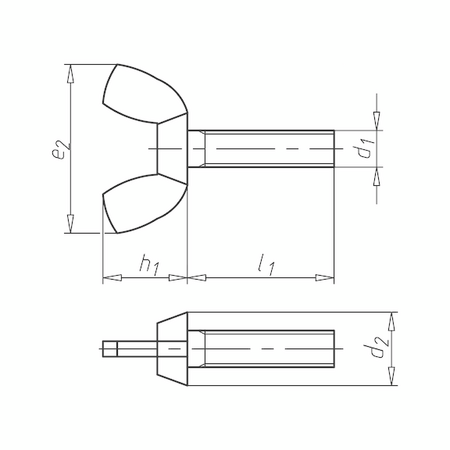

Technical Specifications
- Thread type x nominal diameter: M5
- Outer diameter: 10.3 mm
- Length: 15 mm
- Wing height: 11 mm
- Width of wing on nut: 22.5 mm
- Standards: DIN 316
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated with blue passivation (A2K)
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 11mm x 15mm x 22.5mm
- Weight: 0.02 kg
Key Features
- Square wings similar to DIN 316 for easy manual tightening
- Made from steel with property class 4.8 for strength
- Zinc-plated with blue passivation (A2K) for corrosion resistance
- Pressed design for durability and reliability
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical assemblies requiring hand-tightened fasteners
- Equipment and machinery maintenance
- Furniture assembly and repair
- DIY projects and general fastening needs
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Screw M5 Zinc Plated Steel DIN 316 is available for immediate purchase, ideal for mechanical and general fastening applications.
