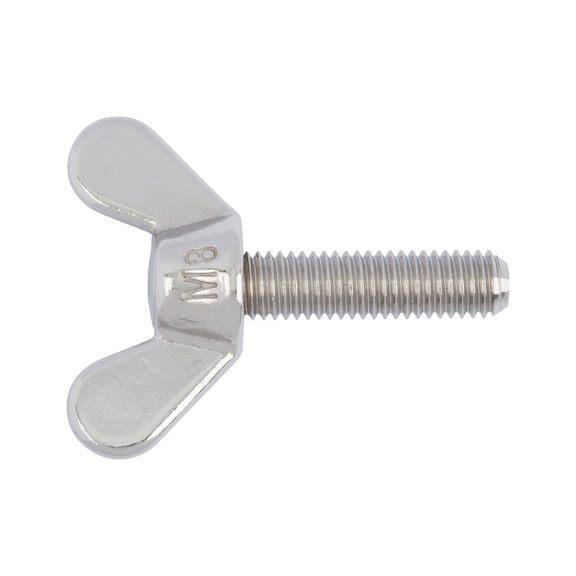

Wing Screw Round Wings DIN 316 | A2 Stainless Steel | Corrosion Resistant & Hand Tightening | @Pack of 10 | by Wurth
Wing Screw Round Wings DIN 316 is crafted from A2 stainless steel, ensuring corrosion resistance and durability. Designed for easy hand tightening, this screw is perfect for mechanical fastening in machinery and equipment. Ideal for applications requiring quick assembly without tools, it complies with DIN 316 standards and is RoHS-compliant, making it a reliable choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw Round Wings DIN 316 | A2 Stainless Steel | Corrosion Resistant & Hand Tightening | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 27281830
Alternatively Known As: Wing nut screw, hand screw, thumb screw, wing bolt

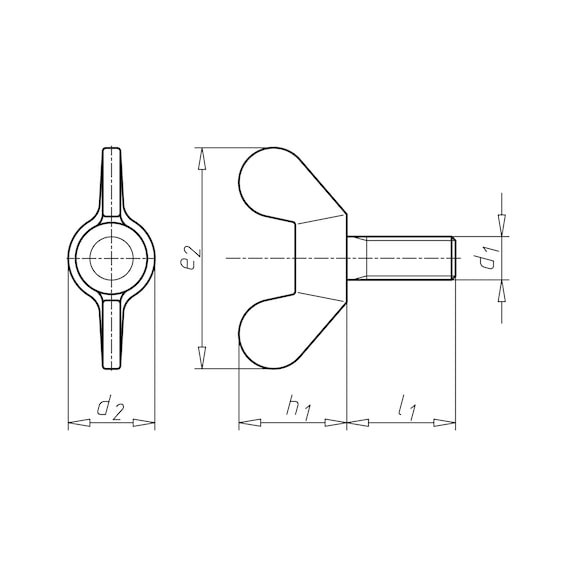

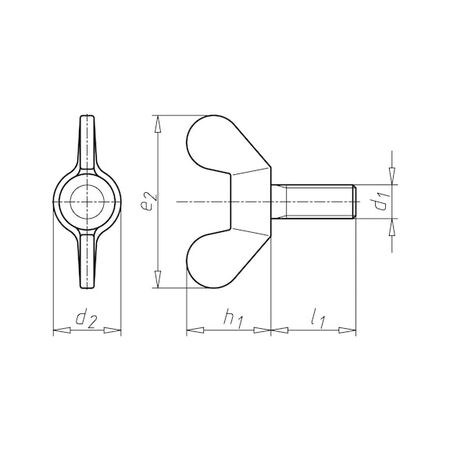

Technical Specifications
- Thread type x nominal diameter: M8
- Outer diameter: 16 mm
- Length: 30 mm
- Wing height: 20 mm
- Width of wing on nut: 39 mm
- Head height: 20 mm
- Material: Stainless steel A2
- Surface finish: Plain
- Thread pitch: 1.25 mm
- Thread form: Standard metric thread
- Design: Forged
- Drive type: With hand
- Product class: C
- Dimensions (H x L x W): 20mm x 30mm x 39mm
- Weight: 0.05 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Forged design for durability and strength
- Round wings allow easy hand tightening
- Complies with DIN 316 standard
- RoHS-compliant
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in environments requiring corrosion resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Screw Round Wings DIN 316 A2 Stainless Steel M8 10 PCS is available for immediate purchase, ideal for mechanical fastening and assembly applications.
