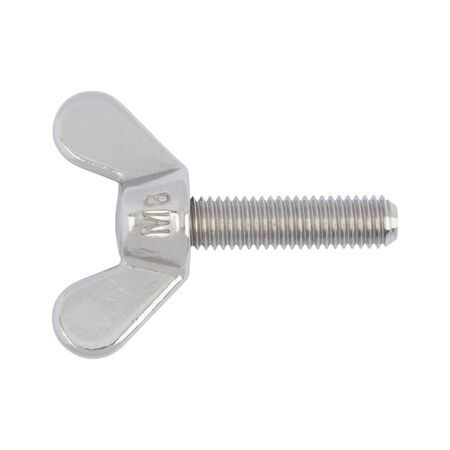

Wing Screw Round Wings DIN 316 | A2 Stainless Steel | Hand-Operable Design | Corrosion Resistant | @Pack of 10 | by Wurth
Wing Screw Round Wings DIN 316 is crafted from A2 stainless steel, ensuring exceptional corrosion resistance and durability. Designed for easy hand operation, this screw is perfect for mechanical fastening in machinery and equipment, allowing for quick assembly without tools. Ideal for environments where reliability and ease of use are paramount.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw Round Wings DIN 316 | A2 Stainless Steel | Hand-Operable Design | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 27281625
Alternatively Known As: Wing Nut Screw, Hand Wing Screw, Stainless Steel Wing Bolt, DIN 316 Wing Screw
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Outer diameter (d2): 13 mm
- Length (l1): 25 mm
- Wing height (h1): 17 mm
- Width of wing on nut (e2): 33 mm
- Head height: 17 mm
- Material: Stainless steel A2
- Surface: Plain
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Design: Forged
- Product class: C
- Dimensions (H x L x W): 17mm x 25mm x 33mm
- Weight: 0.05 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Forged design for durability
- Hand-operable wing head for easy tightening and loosening
- Complies with DIN 316 standard
- RoHS-compliant
Professional Installation Requirements
- No special professional installation required; designed for hand tightening without tools.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in environments requiring corrosion resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Wing Screw Round Wings DIN 316 A2 Stainless Steel Plain M6 10 PCS is available for immediate purchase. Ideal for mechanical fastening applications requiring corrosion resistance and easy manual operation.
