Wing Screw Round Wings DIN 316 | A2 Stainless Steel | Hand-Operable Design | Plain Finish | @Pack of 10 | by Wurth
Wing Screw Round Wings DIN 316 is crafted from A2 stainless steel, ensuring corrosion resistance and durability. With a hand-operable design, it allows for easy tightening and loosening without tools, making it ideal for mechanical fastening in machinery and equipment. Perfect for applications requiring quick assembly, this pack of 10 screws is RoHS-compliant and designed for reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Screw Round Wings DIN 316 | A2 Stainless Steel | Hand-Operable Design | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 27281630
Alternatively Known As: Wing nut screw, thumb screw, hand screw, wing bolt

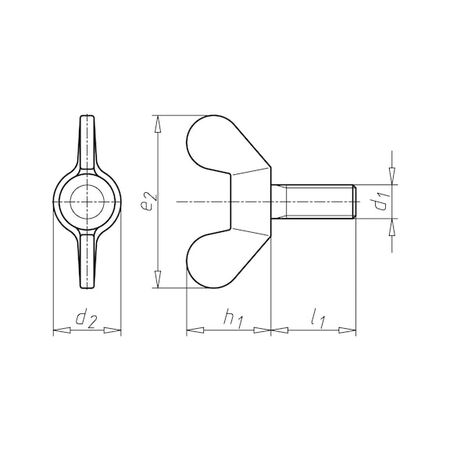

Technical Specifications
- Thread type x nominal diameter: M6
- Outer diameter: 13 mm
- Length: 30 mm
- Wing height: 17 mm
- Width of wing on nut: 33 mm
- Head height: 17 mm
- Standards: DIN 316
- Material: Stainless steel A2
- Surface: Plain
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Design: Forged
- Product class: C
- Dimensions (H x L x W): 17mm x 30mm x 33mm
- Weight: 0.05 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Forged design for durability
- Plain surface finish
- Hand-operable wing head for easy tightening and loosening
- Complies with DIN 316 standard
- RoHS-compliant
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in environments requiring corrosion resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Screw Round Wings DIN 316 A2 Stainless Steel Plain M6 10 PCS is available for immediate purchase, ideal for mechanical fastening and assembly applications.
