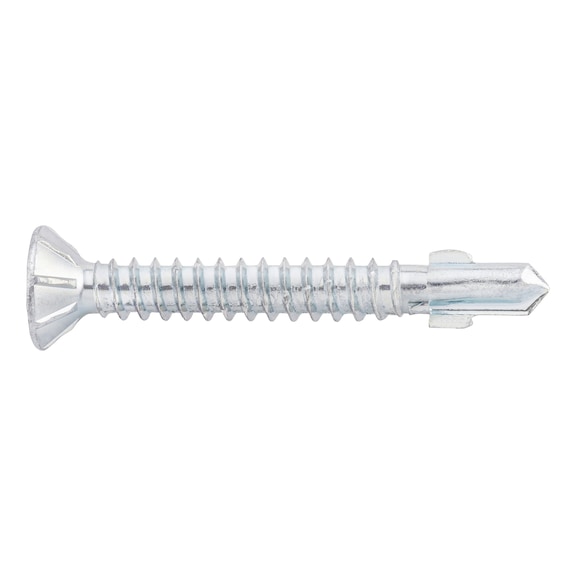

Wing-tip Drilling Screw with Countersunk Milling Head | AW Drive | Zinc-Plated Steel | @Pack of 500 | by Wurth
Wing-tip drilling screws with a countersunk milling head and AW drive are perfect for woodworking and construction. Made from zinc-plated steel, these self-tapping screws ensure efficient drilling and fastening in both hard and soft woods. Ideal for professionals and DIY enthusiasts, they provide optimum centering and fatigue-free screwing for a reliable hold.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-tip Drilling Screw with Countersunk Milling Head | AW Drive | Zinc-Plated Steel | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219124250
Alternatively Known As: Wing-tip self-tapping screw, Countersunk milling head screw, AW drive wood screw, Zinc-plated drilling screw
Technical Specifications
- Nominal diameter (d): 4.2 mm
- Length (l): 50 mm
- Head diameter (d k): 8 mm
- Head height (k 1): 3.2 mm
- Drill tip length (l p): 9 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Countersunk milling head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal) (l U): 3 mm
- Max. material thickness for wood (l H): 38 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 50mm x 8mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with hard and soft woods
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- DIBt National technical approval for diameters 3.9 mm, 4.2 mm, and 4.8 mm
Professional Installation Requirements
- Installation should be performed using application tools with a depth stop and claw coupling. Use a suitable drill driver such as a cordless drill driver with depth control for optimal results.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: Ideal for fastening in wood and metal substructures
- DIY and Professional: For use in various drilling and fastening applications requiring self-tapping screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating enhances corrosion resistance, extending product life and reducing waste
- Durable design reduces the need for frequent replacements
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for detailed terms.
Available Now
The Wurth Wing-tip Drilling Screw with Countersunk Milling Head AW Drive 500 PCS is available now for immediate purchase. Ideal for woodworking, construction, and professional fastening applications.
