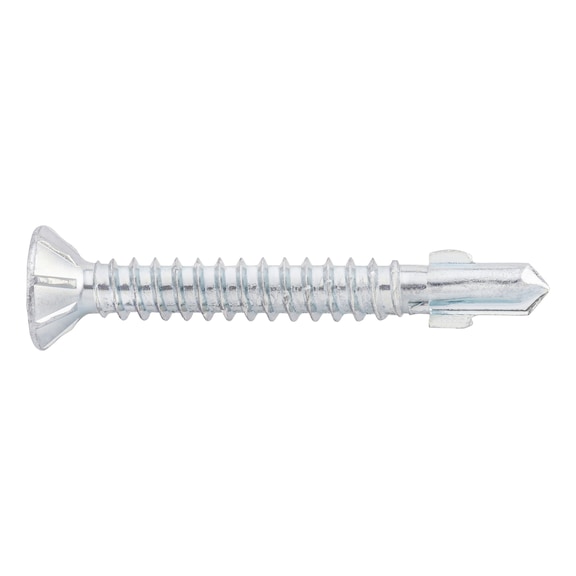

Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Wing-tip drilling screws with a countersunk milling head are perfect for woodworking and construction projects. Made from zinc-plated steel, these self-tapping screws feature an AW drive system for enhanced torque and durability. Ideal for both hard and soft woods, they ensure efficient drilling and fastening, making them a must-have for DIY enthusiasts and professionals alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219123925
Alternatively Known As: Wing-tip self-tapping screw, Countersunk milling head screw, AW drive wood screw, Zinc-plated drilling screw
Technical Specifications
- Nominal diameter: 3.9 mm
- Length: 25 mm
- Head diameter: 7.5 mm
- Head height: 3.2 mm
- Drill tip length: 8 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Countersunk milling head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Max. material thickness for wood: 13 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 25mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with hard and soft woods
- AW drive system for enhanced torque transmission and longer life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- DIBt National technical approval for diameters 3.9 mm, 4.2 mm, and 4.8 mm
Professional Installation Requirements
- Installation should be performed using appropriate application tools with depth stop and claw coupling; use a suitable drill driver such as a cordless drill driver with depth control for optimal results.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: Fastening applications requiring self-tapping screws
- DIY and professional projects involving metal and wood materials
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical safety where applicable
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Wing-tip drilling screws with countersunk milling head AW drive 500 PCS are available for immediate purchase, ideal for woodworking and construction fastening applications.
