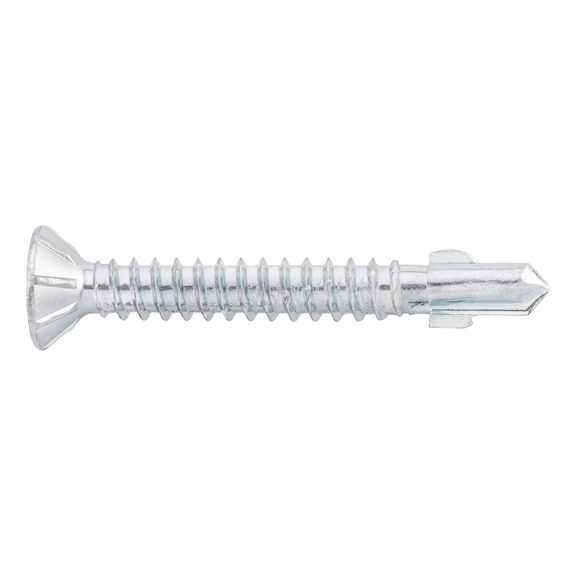

Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Wing-tip drilling screws with a countersunk milling head are perfect for woodworking and construction. Made from zinc-plated steel, these self-tapping screws feature an AW drive system for enhanced torque transmission and fatigue-free screwing. Ideal for both hard and soft woods, they ensure efficient drilling and fastening, making them a must-have for DIY enthusiasts and professionals alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219124232
Alternatively Known As: Wing-tip self-tapping screw, Countersunk wood screw, AW drive screw, Zinc-plated drilling screw
Technical Specifications
- Nominal diameter: 4.2 mm
- Length: 32 mm
- Head diameter: 8 mm
- Head height: 3.2 mm
- Drill tip length: 9 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Countersunk milling head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 3 mm
- Maximum material thickness for wood: 20 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 32mm x 8mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with hard and soft woods
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- Approved with DIBt Z-14.4-634 national technical approval
Professional Installation Requirements
- Installation requires appropriate testing for each application. Use application tools with depth stop and claw coupling. Recommended to use a suitable drill driver such as a cordless drill driver with depth control for optimal results.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: Ideal for fastening in wood and metal substructures
- DIY and professional assembly requiring self-tapping screws with high torque transmission
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for detailed terms.
Available Now
The Wurth Wing-tip Drilling Screw with Countersunk Milling Head AW Drive 500 PCS is available now for immediate purchase. Ideal for woodworking, construction, and professional fastening applications.
