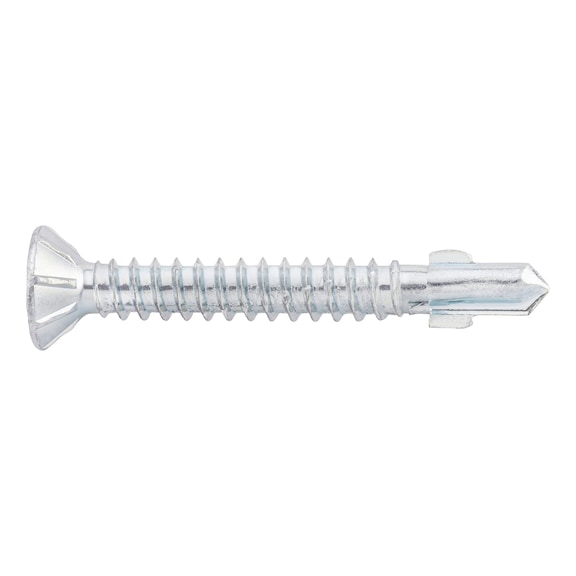

Wing-tip Drilling Screw with Countersunk Milling Head Zinc-Plated Steel AW Drive System Variant-6 Wurth
Wing-tip drilling screws with a countersunk milling head are perfect for woodworking and construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 4.8 mm
- Length: 38 mm
- Head diameter: 9.5 mm
- Head height: 4 mm
- Drill tip length: 10 mm
- Material: Steel
- Surface finish: Zinc plated
- Head type: Countersunk milling head
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 1.8 mm
- Maximum material thickness to be drilled through (metal): 4 mm
- Maximum material thickness for wood: 25 mm
- Recommended installation speed (idling): 1200-1800 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 38mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with hard and soft woods
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- DIBt National technical approval for diameters 3.9 mm, 4.2 mm, and 4.8 mm
Professional Installation Requirements
- Installation should be performed using application tools with a depth stop and claw coupling. Use a suitable drill driver such as a cordless drill driver with depth control for optimal results.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: Ideal for fastening in wood and metal substructures
- DIY and Professional: For use in furniture assembly, cabinetry, and general wood construction
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
- Durable design reduces the need for frequent replacements, minimizing environmental impact
Warranty Information
Wurth offers a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for detailed terms.
Available Now
The Wurth Wing-tip Drilling Screw with Countersunk Milling Head AW Drive 500 PCS is available for immediate purchase. Ideal for woodworking, construction, and professional fastening applications.
