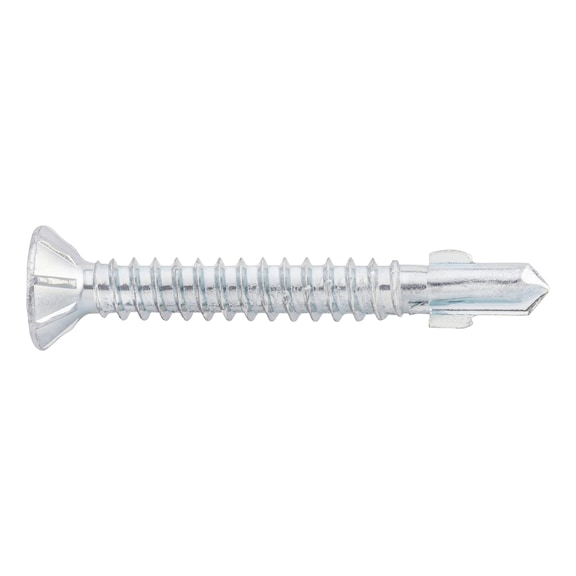

Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Wing-tip drilling screws with a countersunk milling head are perfect for woodworking and construction projects. Made from zinc-plated steel, these self-tapping screws feature an AW drive system for enhanced torque and efficient fastening. Ideal for both hard and soft woods, they ensure optimum centering and prevent damage to surface coatings, making them a reliable choice for professionals and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219124850
Alternatively Known As: Wing-tip wood screws, Countersunk drilling screws, AW drive screws, Zinc-plated self-tapping screws

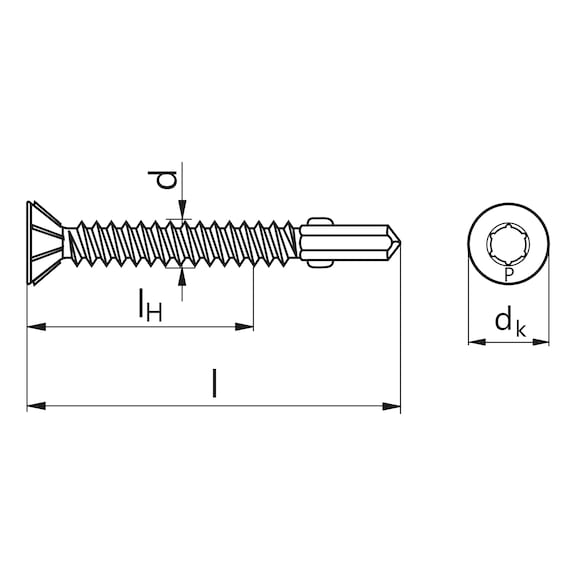

Technical Specifications
- Nominal diameter: 4.8 mm
- Length: 50 mm
- Head diameter: 9.5 mm
- Head height: 4 mm
- Drill tip length: 10 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Countersunk milling head

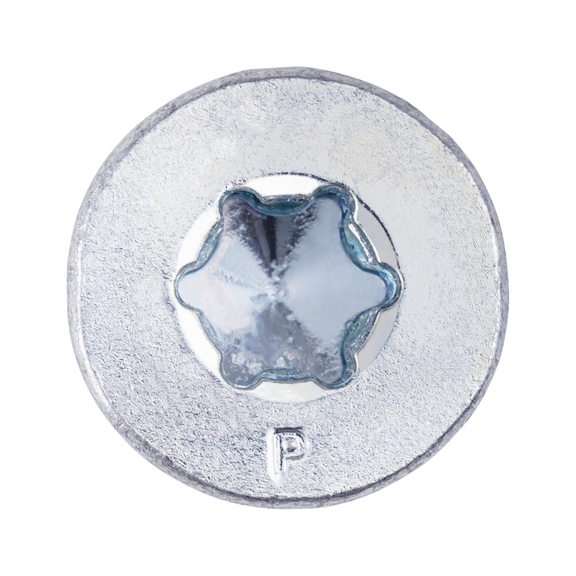

- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 1.8 mm
- Maximum material thickness to be drilled through (metal): 4 mm
- Maximum material thickness for wood: 37 mm
- Recommended installation speed (idling): 1200-1800 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 50mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with hard and soft woods
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- Approved with DIBt Z-14.4-634 national technical approval
Professional Installation Requirements
- Installation should be performed using appropriate application tools with depth stop and claw coupling. Use a suitable drill driver such as a cordless drill driver with depth control for optimal results.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: Ideal for fastening in wood and metal substructures
- DIY and Professional: For use in furniture assembly, cabinetry, and general wood construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth offers a standard product warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Wing-tip drilling screw with countersunk milling head AW drive 500 PCS is available for immediate purchase. Ideal for woodworking, construction, and professional fastening applications.
