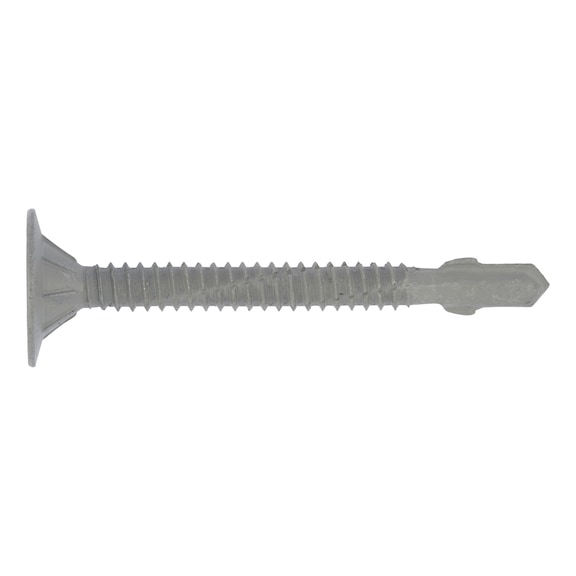

Wing-Type Drilling Screw | AW Drive | Ruspert Coating | 100 PCS | by Wurth
The pias® wing-type drilling screw features a robust AW drive system and a corrosion-resistant Ruspert coating, making it ideal for fastening wood to metal in construction and industrial applications. With a self-drilling design that saves time and ensures optimal centering, this screw is perfect for professionals seeking reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | AW Drive | Ruspert Coating | 100 PCS | by Wurth
Brand: Wurth
SKU: 219063130
Alternatively Known As: Self-drilling wood to metal screw, Ruspert coated drilling screw, AW drive countersunk screw, Wing-type metal screw
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 130 mm
- Head diameter: 20 mm
- Drill tip length: 25 mm
- Material: Steel
- Surface: Flake zinc grey (Ruspert® coating)
- Head type: Disc countersunk head with milling ribs
- Internal drive: AW30
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 2.3 mm
- Maximum metal thickness to drill through: 6 mm
- Maximum attachment thickness: 105 mm
- Recommended installation speed: 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.3mm x 130mm x 20mm
- Weight: 0.05 kg
Key Features
- Steel construction with Ruspert® grey coating for corrosion protection
- AW drive system for enhanced torque transmission and longer tool life
- Self-drilling screw design saves up to 50% time when fastening wood to metal
- Disc countersunk head with milling ribs for better mounting output
- Approx. 500 hours corrosion resistance without base metal corrosion per DIN EN ISO 9227
- Optimum centring and even force distribution to prevent surface coating damage
Professional Installation Requirements
- Installation should be performed using application tools with depth stop and claw coupling to ensure correct fastening and avoid damage. Testing for usability in each application case is recommended.
Applications
- Fastening wood to metal sub-structures
- Construction and building applications requiring corrosion-resistant self-drilling screws
- Industrial and manufacturing assembly involving steel and metal components
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Ruspert® coating extends product life reducing replacement frequency and waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth pias® wing-type drilling screws are available for immediate purchase, ideal for construction, industrial, and woodworking fastening applications.
