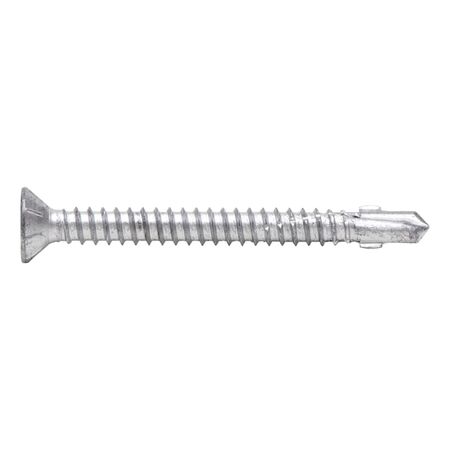

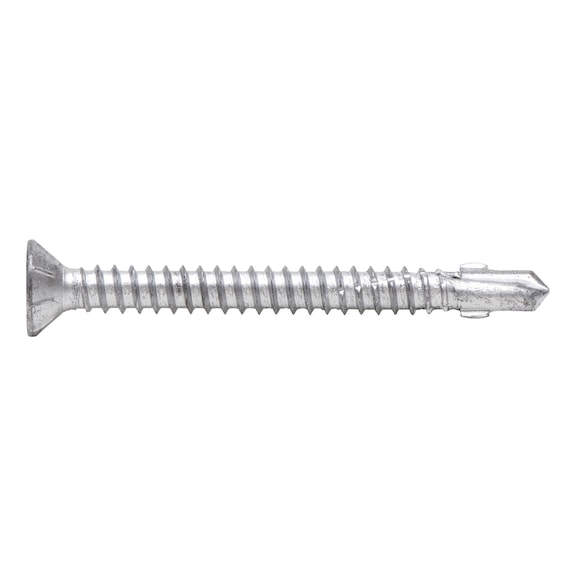

Wing Type Drilling Screw | Bimetal Construction | AW Drive System | Countersunk Milling Head | @Pack of 250 | by Wurth
The Wing Type Drilling Screw features a robust bimetal construction with an A2 stainless steel drilling tip, designed for optimal performance in soft woods and metal up to 5 mm thick. With its AW drive system, this screw ensures enhanced torque transmission and fatigue-free screwing, making it ideal for construction and woodworking applications. The RUSPERT® silver coating provides superior corrosion resistance, ensuring durability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Type Drilling Screw | Bimetal Construction | AW Drive System | Countersunk Milling Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 215885590
Alternatively Known As: Piasta wing screw, Wing type drilling screw, Countersunk milling head screw, AW drive screw, Self-tapping wood screw
Technical Specifications
- Nominal diameter: 5.5 mm
- Length: 90 mm
- Head diameter: 10.8 mm
- Head height: 4.4 mm
- Drill tip length: 11 mm
- Material: Bimetal (A2 stainless steel drilling tip with case hardened steel)
- Surface finish: Flake zinc silver (RUSPERT® coated)
- Head type: Countersunk milling head
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 2.0 mm
- Maximum metal thickness to drill through: 5 mm
- Maximum attachment thickness: 70 mm
- Recommended installation speed: 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 90mm x 10.8mm
- Weight: 0.05 kg
Key Features
- Bimetal construction with A2 stainless steel and case hardened steel drilling tip
- RUSPERT® silver coating for enhanced corrosion resistance
- Self-tapping thread with countersunk milling head
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface protection coating
Professional Installation Requirements
- Installation should be performed using application tools with depth stop and claw coupling. Use suitable drill drivers such as cordless drill drivers with depth stop for optimal performance and safety.
Applications
- Suitable for fastening in soft woods
- Ideal for use in construction and woodworking applications requiring self-tapping screws
- Recommended for metal drilling up to 5 mm thickness
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable coating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for construction, woodworking, and metal fastening applications.
