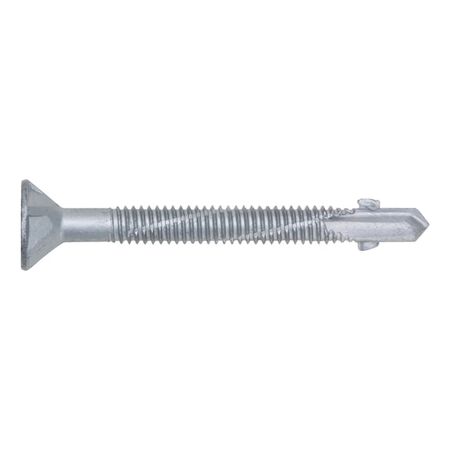

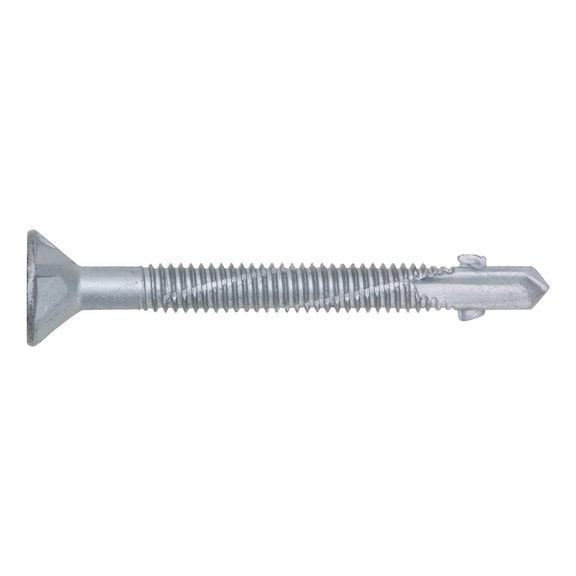

Wing-Type Drilling Screw | Countersunk Head | AW Drive | 250 PCS | by Wurth
The pias® wing-type drilling screw features a countersunk head and AW drive, making it perfect for fastening wood to metal substructures. With a unique self-drilling design that saves up to 50% installation time, this screw is ideal for both softwood and hardwood applications. Its Cr(6)-free corrosion protection ensures durability, while the optimum centering allows for fatigue-free screwing, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Countersunk Head | AW Drive | 250 PCS | by Wurth
Brand: Wurth
SKU: 219864100
Alternatively Known As: Self-drilling screw, Wing-type screw, Countersunk head screw, AW drive screw, Wood to metal screw
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 100 mm
- Head diameter: 12 mm
- Drill tip length: 6 mm
- Material: Steel
- Surface: Flake zinc silver-grey
- Head type: Countersunk head 80 degree
- Internal drive: AW30
- Thread type: UNC
- Minimum recommended substructure thickness: 2 mm
- Maximum metal thickness to drill through: 6 mm
- Maximum wood thickness: 80 mm
- Recommended installation speed (idling): 800-1200 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 100mm x 100mm x 12mm
- Weight: 0.15 kg
Key Features
- Self-drilling screw offering up to 50% time savings
- LAFRE® silver-grey coated with Cr(6)-free corrosion protection
- Approx. 500 hours salt-spray mist corrosion resistance (DIN EN ISO 9227 - NSS)
- Countersunk head with milled pockets for softwood processing
- AW drive system for enhanced torque transmission and longer life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct fastening and optimal performance.
Applications
- Fastening wood to metal substructures
- Use in steel constructions
- Suitable for softwood and hardwood applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Cr(6)-free corrosion protection reduces hazardous substances
- Long-lasting corrosion resistance extends product life and reduces replacement frequency
Warranty Information
Wurth provides standard warranty against manufacturing defects; please refer to Wurth warranty policy for details.
Available Now
The Wurth pias® wing-type drilling screw with countersunk head and AW drive 250 PCS is available for immediate purchase, ideal for construction and metal-wood fastening applications.
