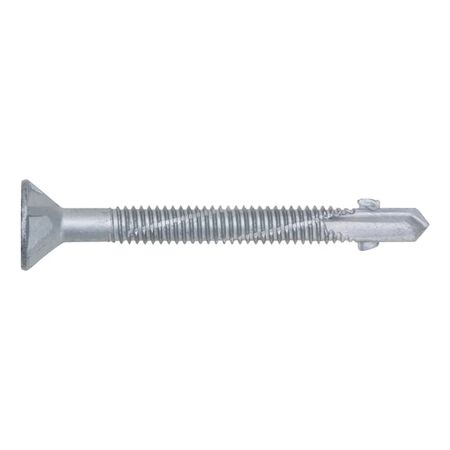

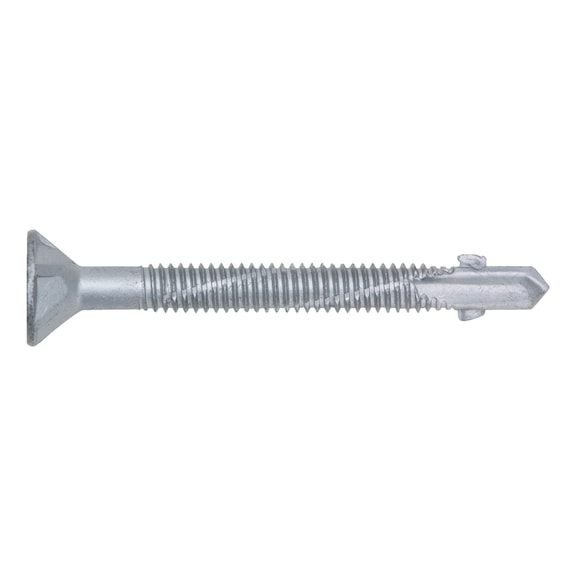

Wing-Type Drilling Screw | Countersunk Head | AW Drive | 250 PCS | by Wurth
The pias® wing-type drilling screw features a countersunk head and AW drive, making it perfect for fastening wood to metal substructures. Designed for professionals, this self-drilling screw offers up to 50% time savings and is coated with Cr(6)-free corrosion protection for enhanced durability. Ideal for steel construction and hardwood processing, it ensures optimal performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Countersunk Head | AW Drive | 250 PCS | by Wurth
Brand: Wurth
SKU: 21986465
Alternatively Known As: Self-drilling wood to metal screw, Countersunk head drilling screw, AW drive screw, Wing-type metal screw
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 65 mm
- Head diameter: 12 mm
- Drill tip length: 6 mm
- Material: Steel
- Surface: Flake zinc silver-grey coating
- Head type: Countersunk head 80 degree
- Internal drive: AW30
- Thread type: UNC
- Minimum recommended substructure thickness: 2 mm
- Maximum metal thickness to drill through: 6 mm
- Maximum wood thickness: 45 mm
- Recommended installation speed (idling): 800-1200 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.15 kg
Key Features
- Self-drilling screw offering up to 50% time savings when fastening wood to metal substructures and steel
- LAFRE® silver-grey coated with Cr(6)-free corrosion protection providing approx. 500 hours salt-spray mist resistance
- Countersunk head with milled pockets designed for softwood processing
- AW drive system for enhanced torque transmission, longer life, optimum centring, and better mounting output
- Even force distribution prevents damage to surface-protection coating, ensuring better corrosion resistance
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct fastening and optimal performance.
Applications
- Fastening wood to metal substructures
- Steel construction fastening
- Softwood and hardwood processing
Standards & Compliance
- Complies with AS/NZS 4785 – Self-drilling screws for metal and wood fastening (commonly referenced standard for fasteners in construction)
Environmental Benefits
- Cr(6)-free corrosion protection reduces hazardous material use
- Long-lasting coating extends product life, reducing replacement frequency
Warranty Information
Wurth offers standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
The Wurth pias® wing-type drilling screw with countersunk head and AW drive 250 PCS is available for immediate purchase, ideal for construction and metal-to-wood fastening applications.
