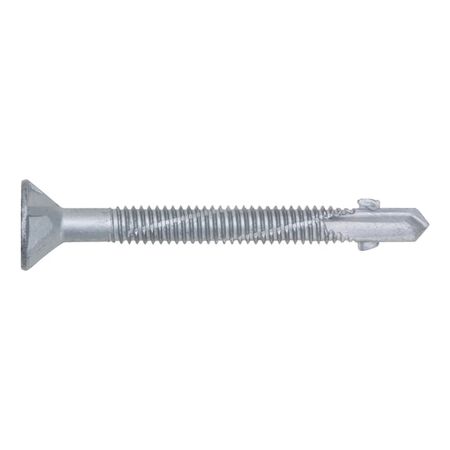

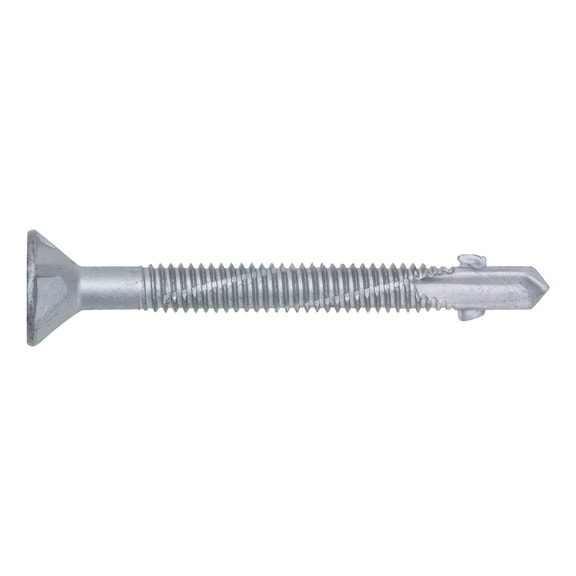

Wing-Type Drilling Screw | Countersunk Head & AW Drive | 50% Time Savings | Flake Zinc Coating | @Pack of 250 | by Wurth
The pias® wing-type drilling screw is designed for fastening wood to metal substructures, offering up to 50% time savings. With a countersunk head and AW drive system, it ensures enhanced torque transmission and better corrosion resistance, making it ideal for construction and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Countersunk Head & AW Drive | 50% Time Savings | Flake Zinc Coating | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 21986455
Alternatively Known As: Self-drilling screw, Wing-type screw, Countersunk head screw, AW drive screw, Wood to metal screw
Technical Specifications
- Nominal diameter (d): 6.3 mm
- Length (l): 55 mm
- Head diameter (d k): 12 mm
- Drill tip length (l p): 6 mm
- Material: Steel
- Surface: Flake zinc silver-grey
- Head type: Countersunk head 80 degree
- Internal drive: AW30
- Thread type: UNC
- Min. recommended substructure thickness: 2 mm
- Max. material thickness to be drilled through (metal) (l U): 6 mm
- Max. material thickness for wood (l H): 35 mm
- Min./max. recommended installation speed (idling): 800-1200 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 55mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Self-drilling screw with up to 50% time savings when fastening wood to metal substructures
- LAFRE® silver-grey coated with Cr(6)-free corrosion protection, approx. 500 hours salt-spray mist test (DIN EN ISO 9227 - NSS)
- Countersunk head with milled pockets for processing in softwood
- AW drive system for enhanced torque transmission, longer life, optimum centring, and better mounting output
- Even force distribution prevents damage to surface-protection coating, ensuring better corrosion resistance
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and compliance with structural requirements.
Applications
- Fastening wood to metal substructures
- Use in steel and hardwood applications
- Suitable for construction and industrial fastening tasks
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Cr(6)-free corrosion protection reduces environmental and health hazards
- Long-lasting coating extends product life, reducing waste
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
Wurth pias® wing-type drilling screw with countersunk head and AW drive is available for immediate purchase, ideal for construction and industrial fastening applications.
