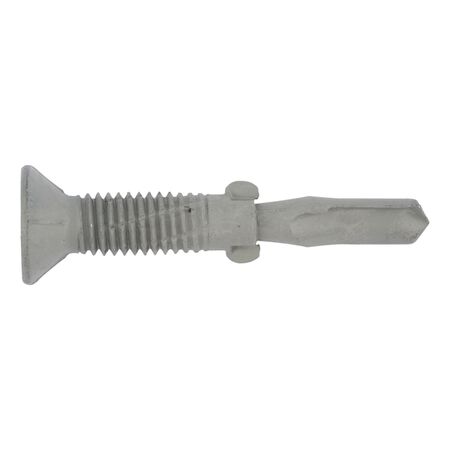

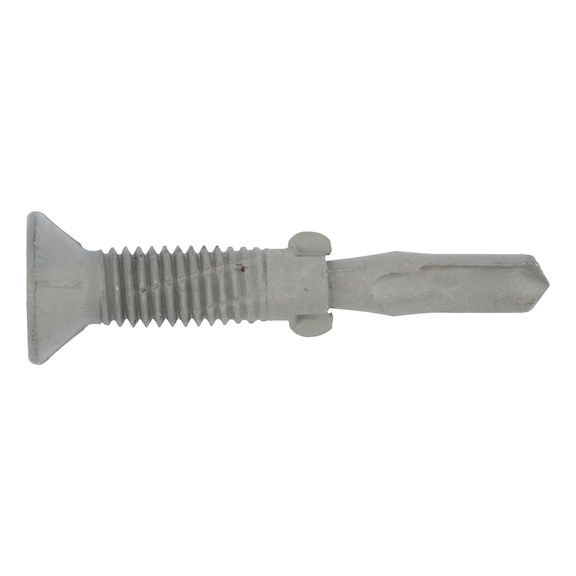

Wing-Type Drilling Screw | Countersunk Milling Head | AW Drive | Ruspert Coated | @Pack of 25 | by Wurth
The pias® wing-type drilling screw is designed for efficient fastening of wood to metal sub-structures, featuring a countersunk milling head and AW drive for enhanced torque transmission. With a durable Ruspert coating for corrosion protection, this screw is ideal for construction and industrial applications, ensuring up to 50% time savings during installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Countersunk Milling Head | AW Drive | Ruspert Coated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 219008100
Alternatively Known As: Self-drilling screw, Wing pias screw, Countersunk milling head screw, AW drive screw, Ruspert coated screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 100 mm
- Head diameter: 15 mm
- Head height: 5.4 mm
- Drill tip length: 18 mm
- Material: Steel
- Surface: Flake zinc grey (Ruspert® coating)
- Head type: Countersunk milling head
- Internal drive: AW40
- Thread type: Metric thread
- Minimum recommended substructure thickness: 3 mm
- Maximum metal thickness to be drilled through: 12 mm
- Maximum attachment thickness: 68 mm
- Recommended installation speed (idling): 600-1200 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5.4mm x 100mm x 15mm
- Weight: 0.05 kg
Key Features
- Self-drilling screw enabling up to 50% time savings when fastening wood to metal
- Steel, Ruspert®-coated (grey) for corrosion protection with approx. 500 hours resistance against base metal corrosion according to DIN EN ISO 9227
- NSS AW drive system for enhanced torque transmission and longer life
- Optimum centring and better mounting output due to fatigue-free screwing
- Lower required contact pressure for torque transmission
- Largest possible contact surface of bit in screw drive for even force distribution
- Prevents damage to surface-protection coating ensuring better corrosion resistance
Professional Installation Requirements
- Installation should be performed using application tools with a depth stop and claw coupling. Wing-pias screws must be tested for usability for each application case.
Applications
- Fastening wood to metal sub-structures
- Suitable for construction and industrial applications requiring self-drilling screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable corrosion protection extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth pias® Wing-Type Drilling Screw is available for immediate purchase, ideal for efficient fastening of wood to metal sub-structures in construction and industrial settings.
