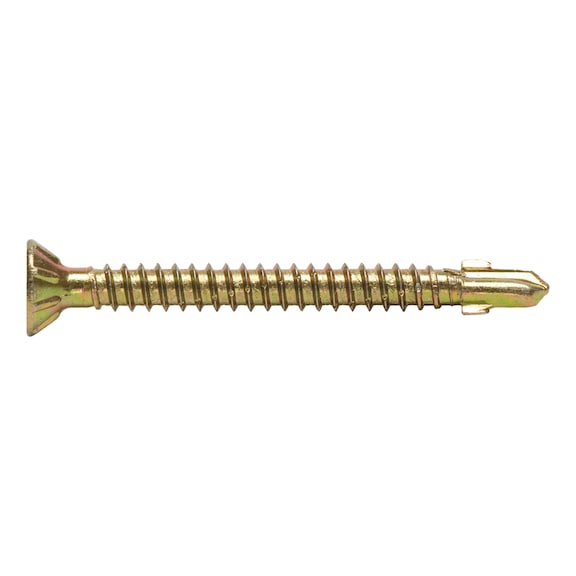

Wing-Type Drilling Screw | Countersunk Milling Head | AW Drive | Yellow Galvanized | @Pack of 500 | by Wurth
The pias® wing-type drilling screw is designed for fastening wood to metal, featuring a countersunk milling head and AW drive for enhanced torque transmission. With a yellow galvanized surface for corrosion resistance, this screw is perfect for construction and woodworking applications, ensuring efficient installation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Countersunk Milling Head | AW Drive | Yellow Galvanized | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219113925
Alternatively Known As: Self-drilling wood to metal screw, Wing pias screw, Countersunk milling head screw, AW drive screw, Yellow galvanized self-tapping screw
Technical Specifications
- Nominal diameter: 3.9 mm
- Length: 25 mm
- Head diameter: 7.5 mm
- Head height: 3.2 mm
- Drill tip length: 8 mm
- Material: Steel
- Surface: Zinc plated yellow
- Head type: Countersunk milling head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 1.5 mm
- Maximum metal thickness to be drilled through: 2.5 mm
- Maximum wood thickness: 13 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: No
- Dimensions (H x L x W): 3.2mm x 25mm x 7.5mm
- Weight: 0.5 kg
Key Features
- Self-drilling screw enabling up to 50% time savings when fastening wood to metal
- Steel, yellow galvanized surface for enhanced corrosion resistance
- Self-tapping thread with countersunk milling head
- AW drive system for enhanced torque transmission and longer life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- Recommended use with application tools featuring depth stop and claw coupling
Professional Installation Requirements
- Installation should be performed using appropriate application tools with depth stop and claw coupling by trained personnel to ensure optimal fastening and safety.
Applications
- Fastening wood to metal sub-structures in construction and woodworking
- Suitable for use with hard and soft woods
- Ideal for applications requiring corrosion-resistant self-drilling screws
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plated yellow coating extends product life reducing replacement frequency
- Efficient fastening reduces installation time and energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth pias® wing-type drilling screw with countersunk milling head and AW drive is available for immediate purchase, ideal for construction and woodworking fastening applications.
