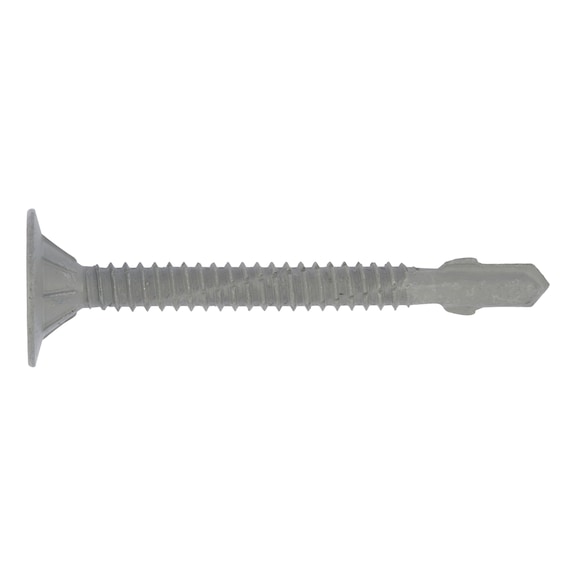

Wing-Type Drilling Screw | Flat Countersunk Milling Head | AW Drive | Corrosion Resistant | @Pack of 25 | by Wurth
The pias® wing-type drilling screw is designed for fastening wood to metal sub-structures, featuring a flat countersunk milling head and an AW drive for enhanced torque transmission. Made from steel with a Ruspert® grey coating, it offers excellent corrosion resistance, making it ideal for construction and industrial applications. Save time with self-drilling capabilities and ensure secure fastening with optimum centering and even force distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Flat Countersunk Milling Head | AW Drive | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 21906365
Alternatively Known As: Self-drilling wood to metal screw, Wing-type drilling screw, Flat countersunk screw with AW drive
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 65 mm
- Head diameter: 20 mm
- Drill tip length: 13 mm
- Material: Steel
- Surface: Flake zinc grey (Ruspert® coating)
- Head type: Disc countersunk head with milling ribs
- Internal drive: AW30
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 2 mm
- Maximum metal thickness to drill through: 6 mm
- Maximum attachment thickness: 43 mm
- Recommended installation speed (idling): 800-1200 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 65mm x 65mm x 20mm
- Weight: 0.05 kg
Key Features
- Steel construction with Ruspert® grey coating for corrosion protection
- AW drive system for enhanced torque transmission and longer life
- Self-drilling screw saves up to 50% time when fastening wood to metal
- Disc countersunk head with milling ribs for better mounting output
- Approx. 500 hours corrosion resistance according to DIN EN ISO 9227 NSS
- Optimum centring and even force distribution to prevent surface damage
- Requires application tools with depth stop and claw coupling for installation
Professional Installation Requirements
- Installation requires application tools with depth stop and claw coupling; professional installation recommended to ensure correct fastening and safety.
Applications
- Fastening wood to metal sub-structures
- Suitable for construction and industrial applications requiring self-drilling screws
Standards & Compliance
- Complies with AS/NZS 4785 for fasteners and AS/NZS 45001 Occupational Health & Safety (aligned with ISO 45001) for safe installation practices
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Long-lasting corrosion protection reduces need for replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth pias® wing-type drilling screws are available for immediate purchase, ideal for construction and industrial fastening applications involving wood to metal sub-structures.
