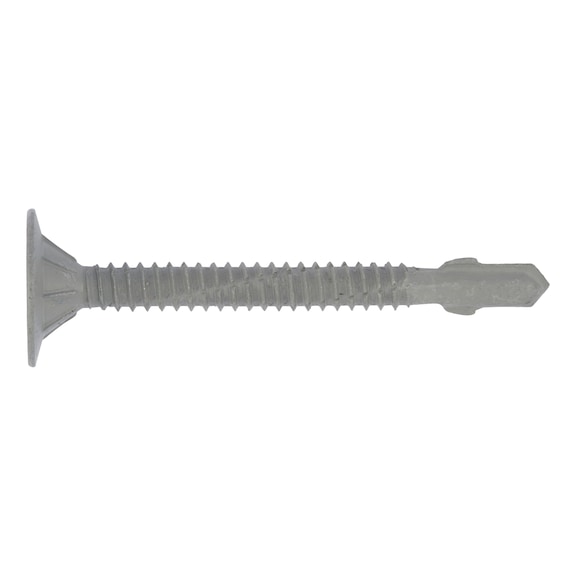

Wing-Type Drilling Screw | Flat Countersunk Milling Head | AW Drive | Corrosion-Resistant | by Wurth
The pias® wing-type drilling screw features a flat countersunk milling head and an AW drive, making it ideal for fastening wood to metal structures. With a steel construction and Ruspert® grey coating, it offers exceptional corrosion protection and time-saving installation. Perfect for construction and industrial applications, this self-drilling screw ensures reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-Type Drilling Screw | Flat Countersunk Milling Head | AW Drive | Corrosion-Resistant | by Wurth
Brand: Wurth
SKU: 219063110
Alternatively Known As: Wing-Type Self-Drilling Screw, Flat Countersunk Drilling Screw, AW Drive Screw, Ruspert Coated Screw
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 110 mm
- Head diameter: 20 mm
- Drill tip length: 25 mm
- Material: Steel
- Surface finish: Flake zinc grey (Ruspert® coating)
- Head type: Disc countersunk head with milling ribs
- Internal drive: AW30
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 2.3 mm
- Maximum metal thickness to be drilled through: 6 mm
- Maximum attachment thickness: 88 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.3mm x 110mm x 20mm
- Weight: 0.05 kg
Key Features
- Steel construction with Ruspert® grey coating for corrosion protection
- Self-drilling screw enabling up to 50% time saving when fastening wood to metal
- AW drive system for enhanced torque transmission and longer tool life
- Flat countersunk milling head with milling ribs for optimum centring and better mounting output
- Corrosion protection approximately 500 hours with no base metal corrosion per DIN EN ISO 9227 NSS
- Even force distribution prevents damage to surface-protection coating, improving corrosion resistance
Professional Installation Requirements
- Must be installed using application tools with a depth stop and claw coupling. Professional testing for usability in each application case is recommended.
Applications
- Fastening wood to metal sub-structures
- Construction and building applications requiring corrosion-resistant self-drilling screws
- Industrial and manufacturing assembly involving metal and wood components
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable corrosion protection extends product life, reducing replacement frequency and waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth pias® wing-type drilling screw is available for immediate purchase, ideal for construction and industrial fastening applications.
