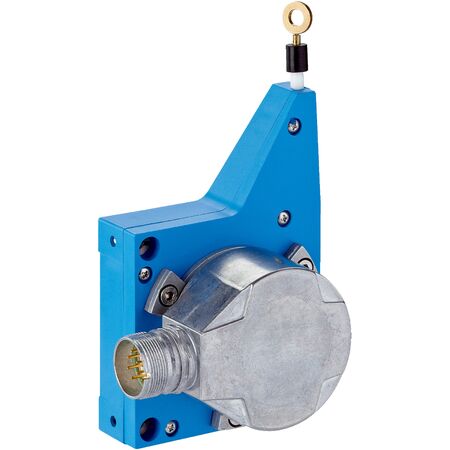

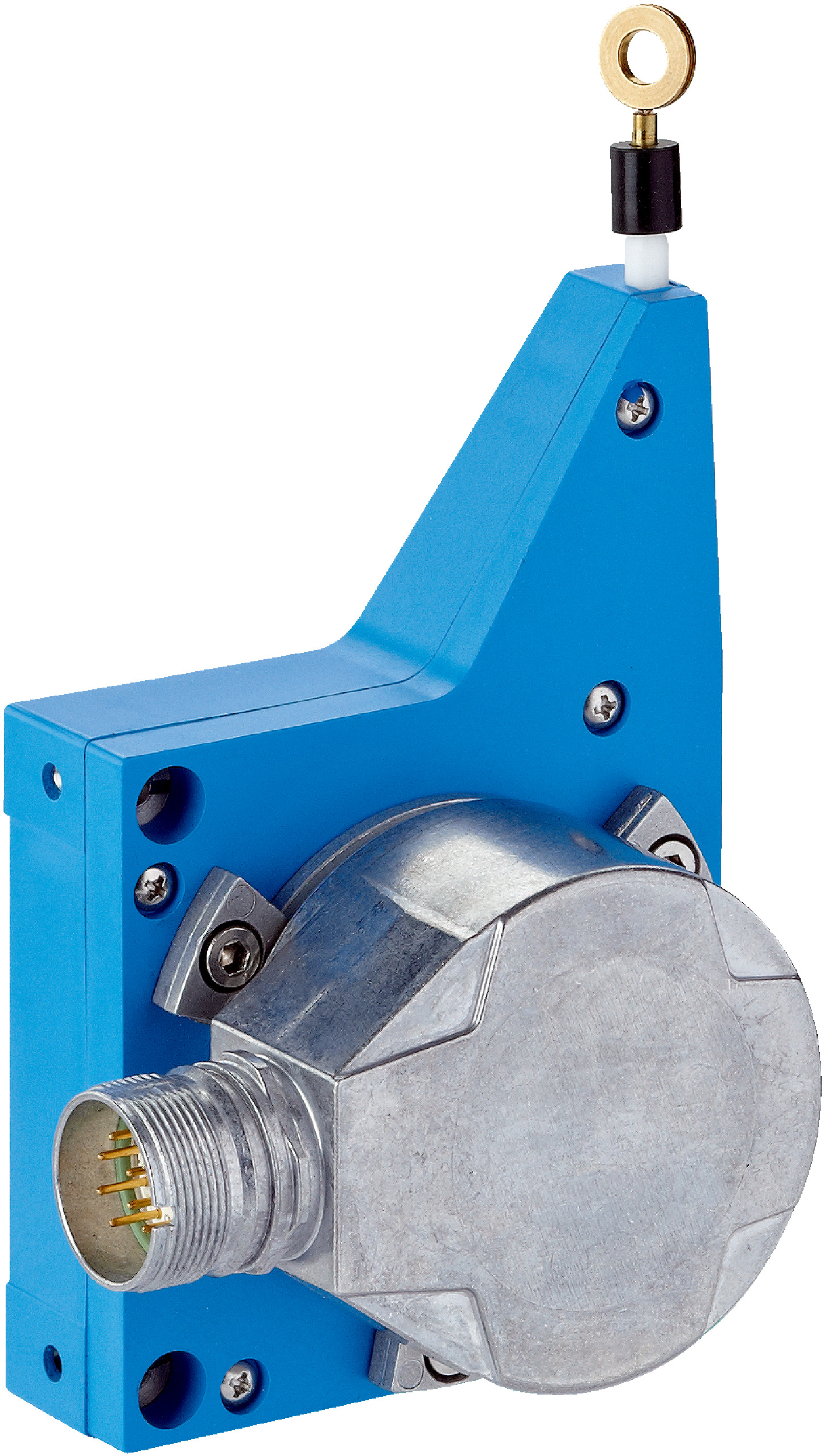

Wire Draw Encoder PFG08-E1AM0371 | 0.01 mm Resolution | IP50 Enclosure | by SICK
The Wire Draw Encoder PFG08-E1AM0371 offers high measurement accuracy with a 0.01 mm resolution, making it ideal for industrial automation and safety-related applications. Designed for durability, it features a robust plastic Noryl housing and stainless steel measuring wire, ensuring a long service life of up to 1,000,000 cycles. With a wide operating temperature range from -30°C to +70°C, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: DFS60 series
- Operating temperature range: -30°C to +70°C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.55 kg
Key Features
- High measurement accuracy with 0.01 mm resolution
- Robust design with plastic Noryl housing and stainless steel measuring wire
- Long service life with up to 1,000,000 cycles
- Wide operating temperature range from -30°C to +70°C
- Low power consumption of ≤ 0.5 W
- IP50 enclosure rating with IP67 for mounted mechanic
- Incremental encoder interface with HTL and Push pull communication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PFG08-E1AM0371 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
