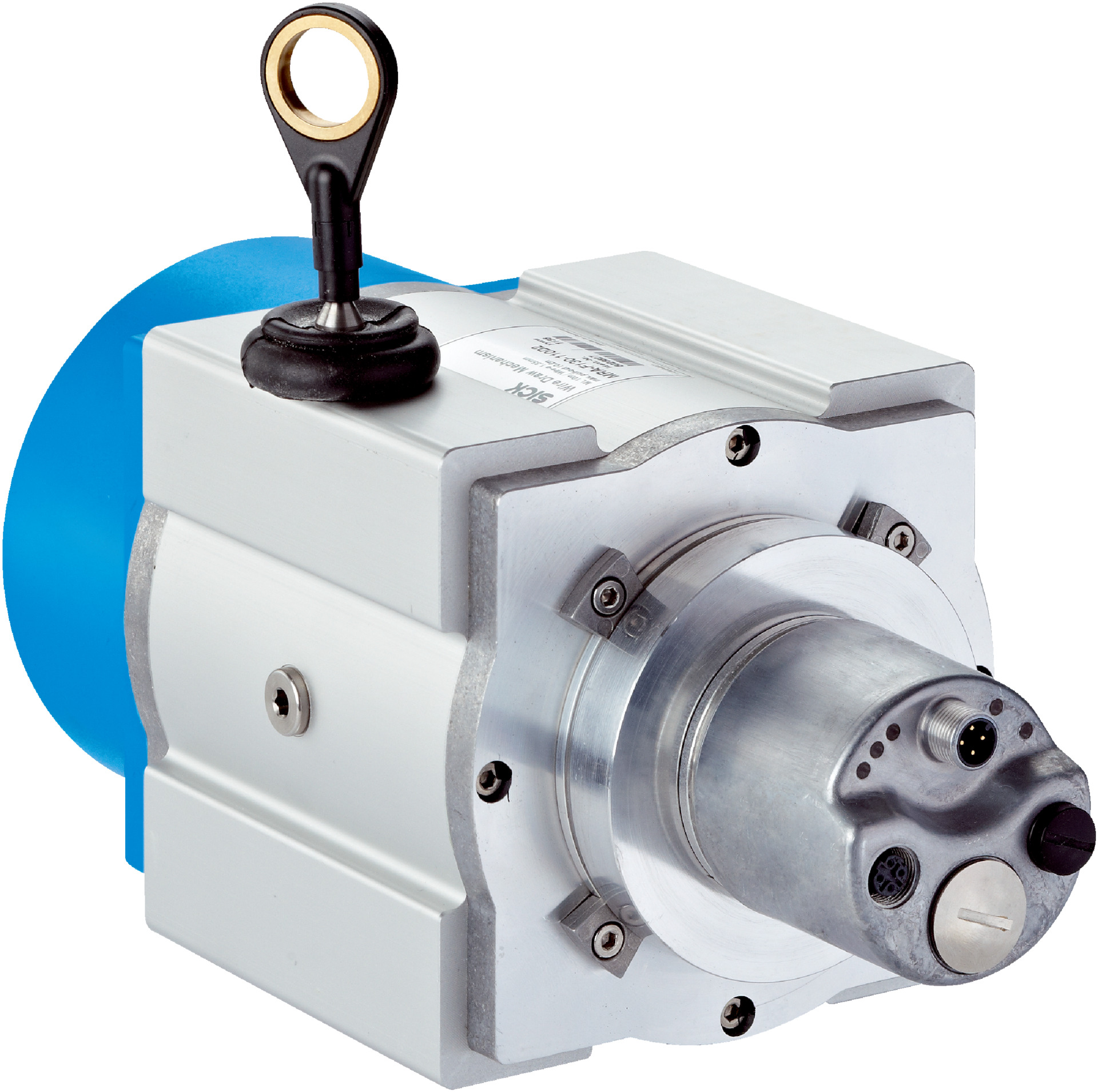

Wire Draw Encoder | 0 to 10 m Measurement Range | 0.001 mm Resolution | EtherCAT® Interface | by SICK
The Wire Draw Encoder offers a measurement range of 0 to 10 m with an impressive resolution of 0.001 mm, making it ideal for industrial automation and safety systems. Designed for precise linear measurement, this absolute encoder features EtherCAT® communication and robust IP64/IP67 protection, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: EtherCAT®
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.7 kg
Key Features
- Measurement range of 0 m to 10 m
- High resolution of 0.001 mm
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- Hysteresis ≤ 3 mm
- Absolute encoder with EtherCAT® communication interface
- Programmable and configurable
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 10 N and 20 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and EtherCAT® communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation and safety systems
- Position measurement in machinery
- Process control requiring precise linear measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF13-E1BM1099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise linear measurement.
