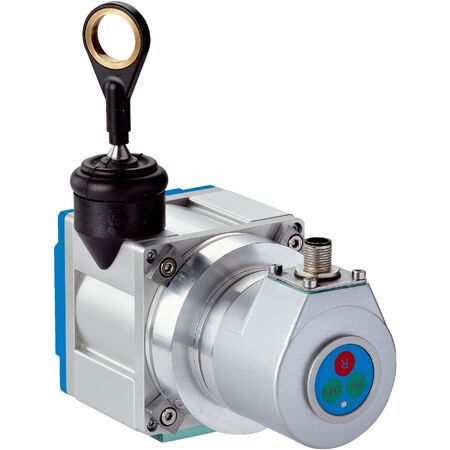

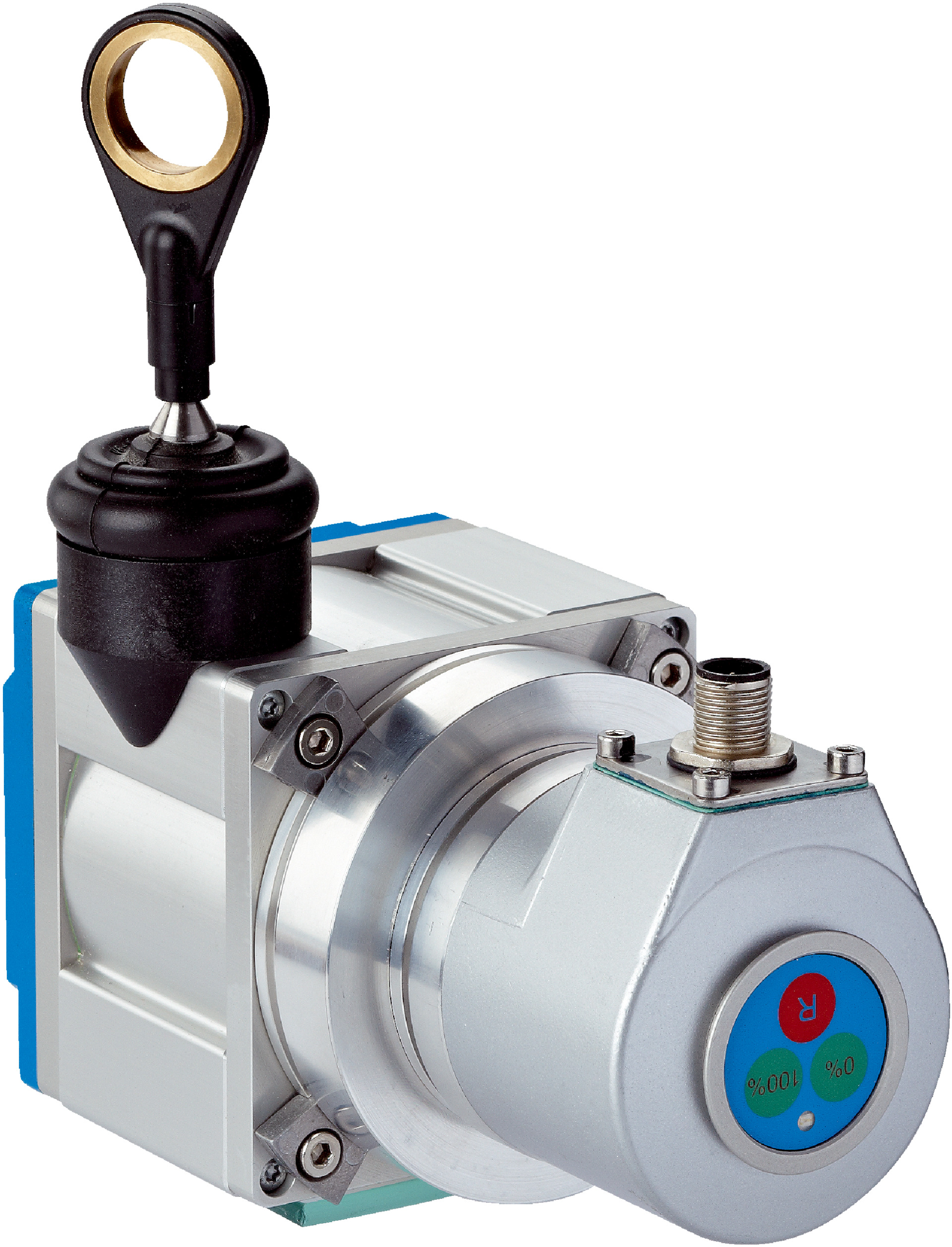

Wire Draw Encoder | 0.02 mm Resolution | IP64 Rated | 2 m Measurement Range | by SICK
The Wire Draw Encoder offers high measurement accuracy with a 0.02 mm resolution, making it ideal for industrial automation and precise linear position measurement. With a robust aluminum housing and an IP64 rated enclosure, it operates effectively in challenging environments, ensuring reliability in machine safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Analog / Voltage / 0...10 V
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Connection type: Male connector, M12, 5-pin, radial
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Mounted encoder: ACM60, ACM60B-S1LE13X06
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 600 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 1.7 kg
Key Features
- High measurement accuracy with 0.02 mm resolution
- Robust aluminum housing with anodized and nickel-plated finish
- Long wire draw length of 2.2 meters with 1,000,000 cycle life
- IP64 rated enclosure with IP67 for mounted mechanic
- Wide operating temperature range from -30°C to +70°C
- Analog voltage output (0...10 V) with programmable interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise linear position measurement
- Machine safety and control systems
- Process monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient electronics minimize power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF08-L1EM02PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise linear measurement.
