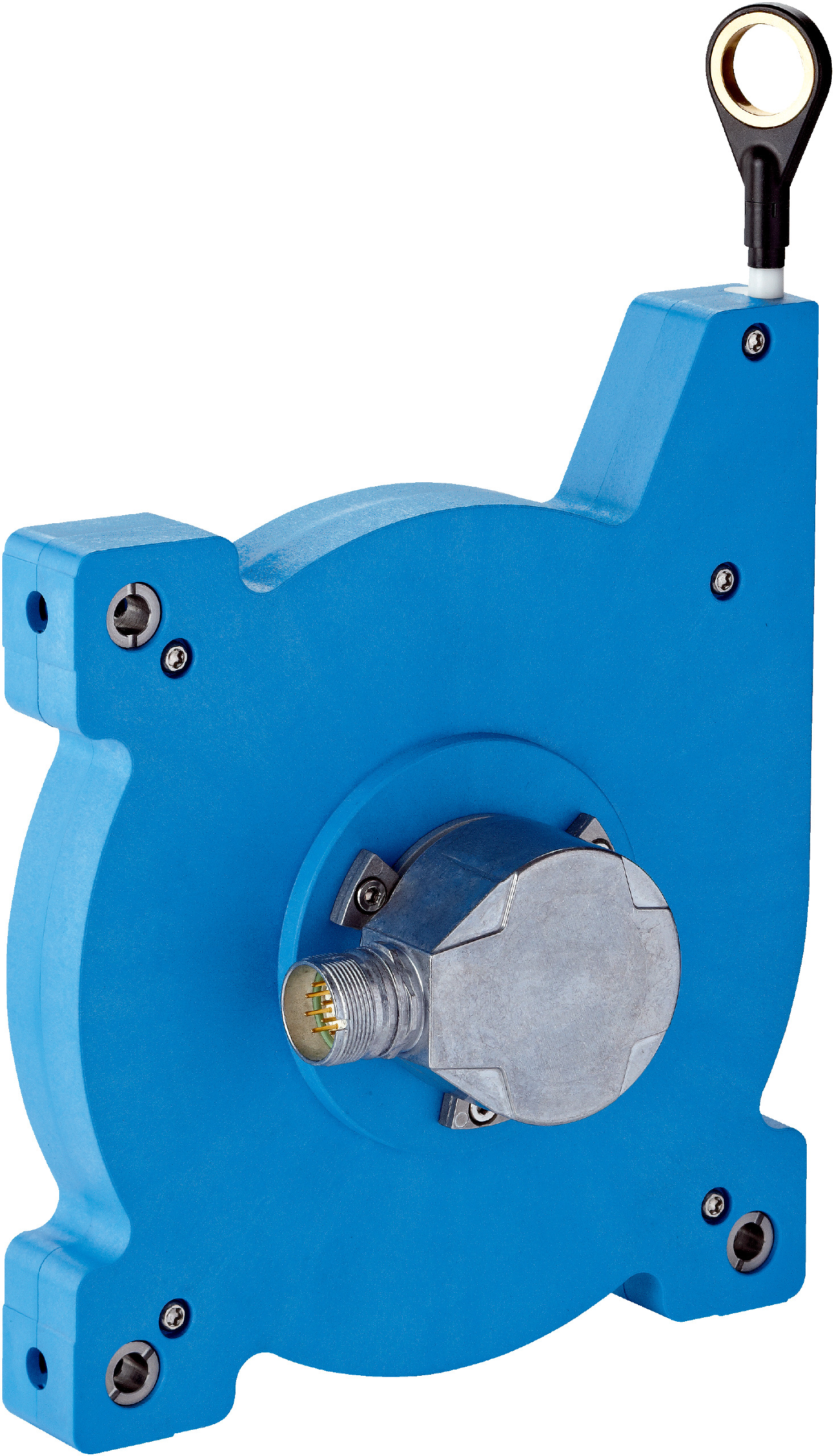

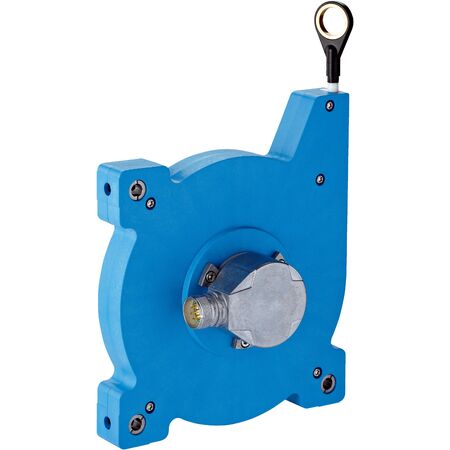

Product Name/Title: Wire Draw Encoder BCG19-A1AM1007 | 10m Measurement Range | Absolute Encoder with SSI | 0.14mm Resolution | by SICK
Brand: SICK
SKU: 1056983
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Length Measurement Encoder, Absolute Wire Encoder
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoder
- Resolution: 0.14 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Enclosure rating: IP50 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 250 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.2 kg
Key Features
- Measurement range up to 10 meters
- Absolute encoder with SSI communication interface
- High resolution of 0.14 mm and repeatability ≤ 0.2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 9 N and 12 N
- Long service life with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable position feedback
- Machine control systems with absolute encoder requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG19-A1AM1007 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
