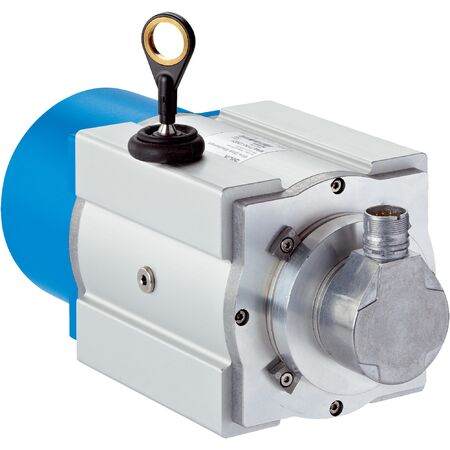

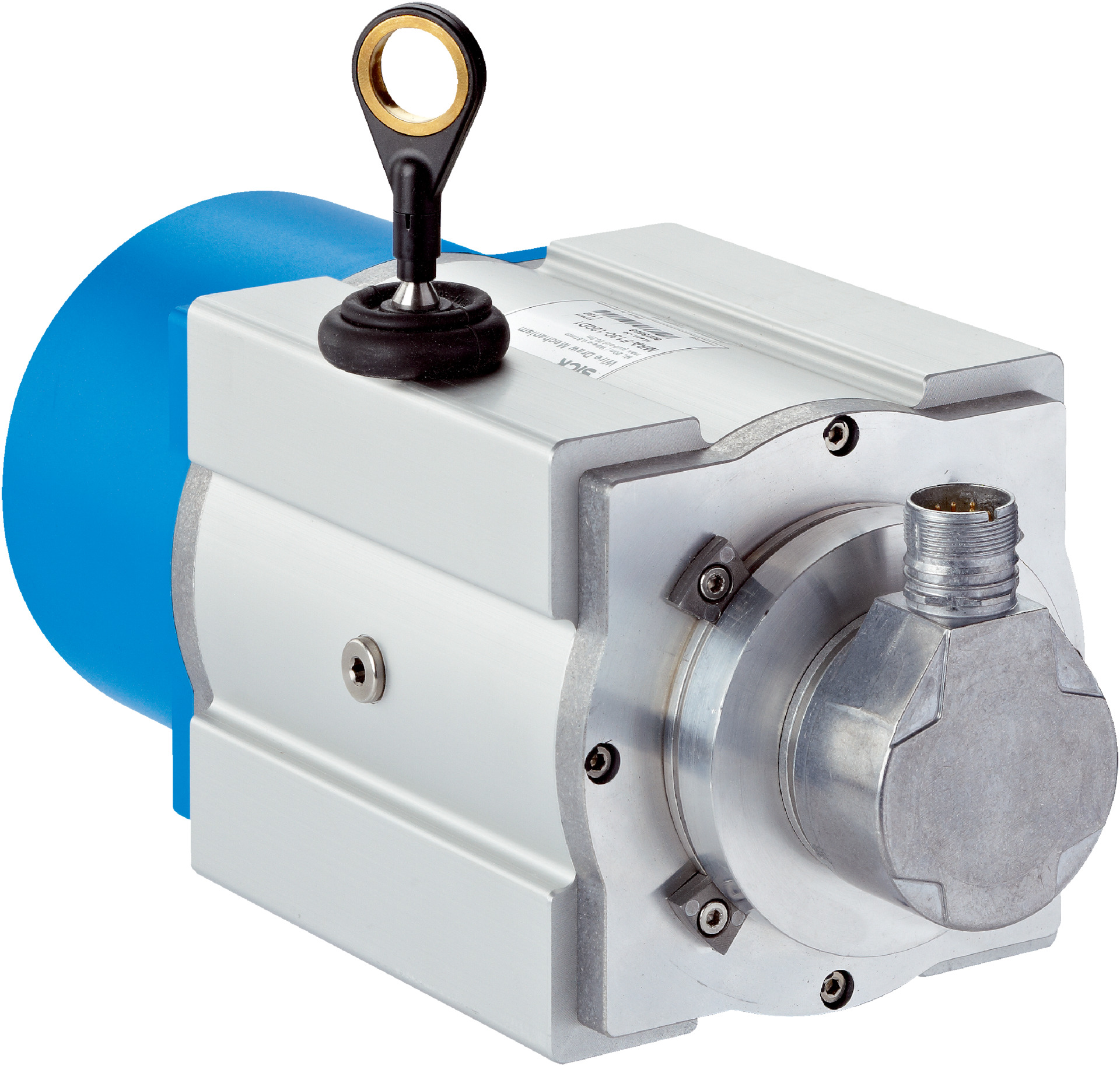

Wire Draw Encoder PRF13-E1AM2020 | 20m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder PRF13-E1AM2020 offers a measurement range of up to 20 meters with a high resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. Designed for precise length measurement, this encoder features a robust aluminum and plastic housing with IP64/IP67 protection, ensuring durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF13-E1AM2020 | 20m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034338
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Length Measurement Encoder, Safety Wire Encoder
Technical Specifications
- Measurement range: 0 m to 20 m
- Resolution: 0.03 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Incremental / HTL / Push pull
- Programmable interface and line count up to 10,000 lines
- Connection: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire: Highly flexible stranded stainless steel (V4A)
- Spring return force: 10 N to 20 N
- Wire acceleration: 30 m/s²
- Operating speed: 6 m/s
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature: -30 °C to +70 °C
- MTTFD: 300 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.3 kg
Key Features
- Measurement range up to 20 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability and linearity within ±2 mm
- Programmable incremental / HTL / Push pull communication interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw encoders
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PRF13-E1AM2020 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
