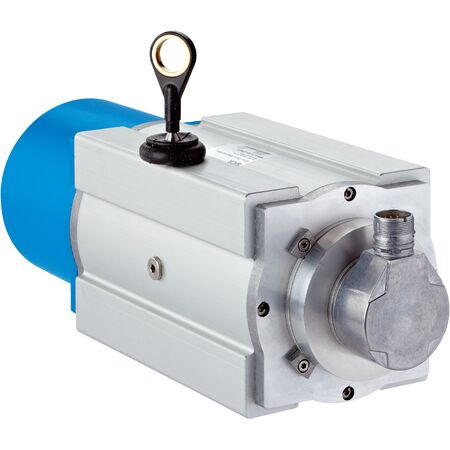

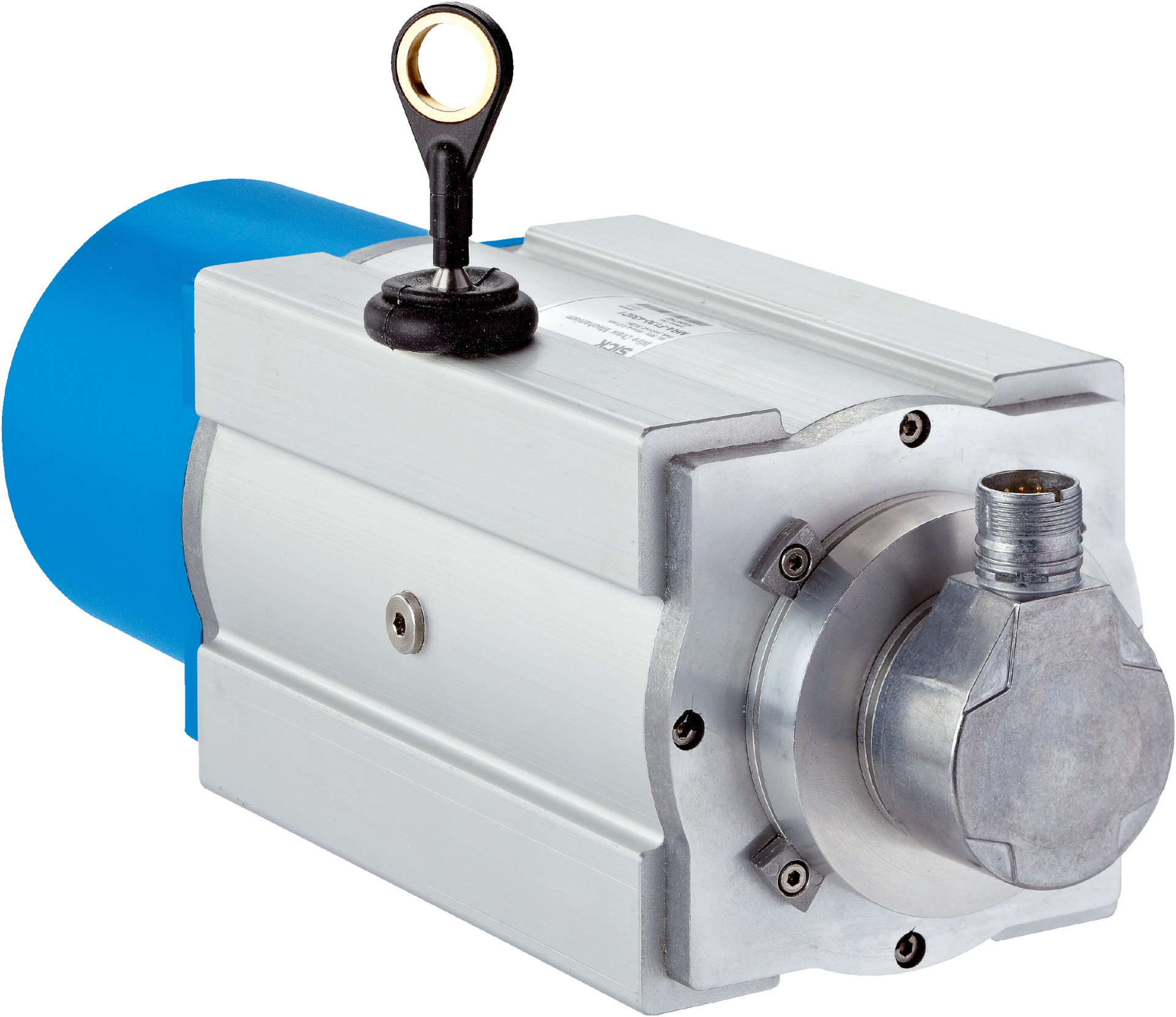

Wire Draw Encoder PRF13-A1AM3020 | 30m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder PRF13-A1AM3020 offers a high measurement range of up to 30 meters and an impressive resolution of 0.03 mm, making it ideal for industrial automation and safety measurement applications. With a robust design featuring IP64/IP67 protection and a long life of approximately 1,000,000 cycles, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF13-A1AM3020 | 30m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034327
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Length Measurement Encoder, Incremental Wire Encoder
Technical Specifications
- Measurement range: 0 m to 30 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 15 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.5 kg
Key Features
- High measurement range up to 30 m
- Incremental encoder with programmable/configurable interface
- High resolution of 0.03 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and measurement equipment to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation and safety-related measurement applications
- Position and length measurement in manufacturing processes
- Machine safety monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PRF13-A1AM3020 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
