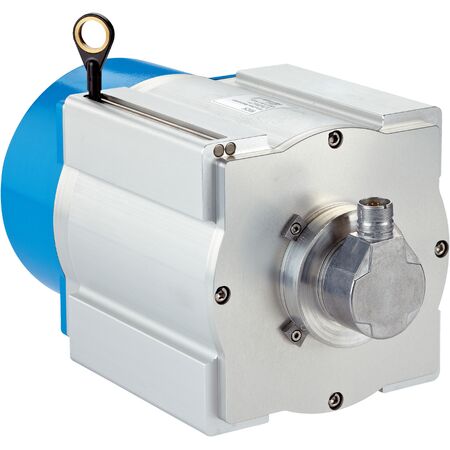

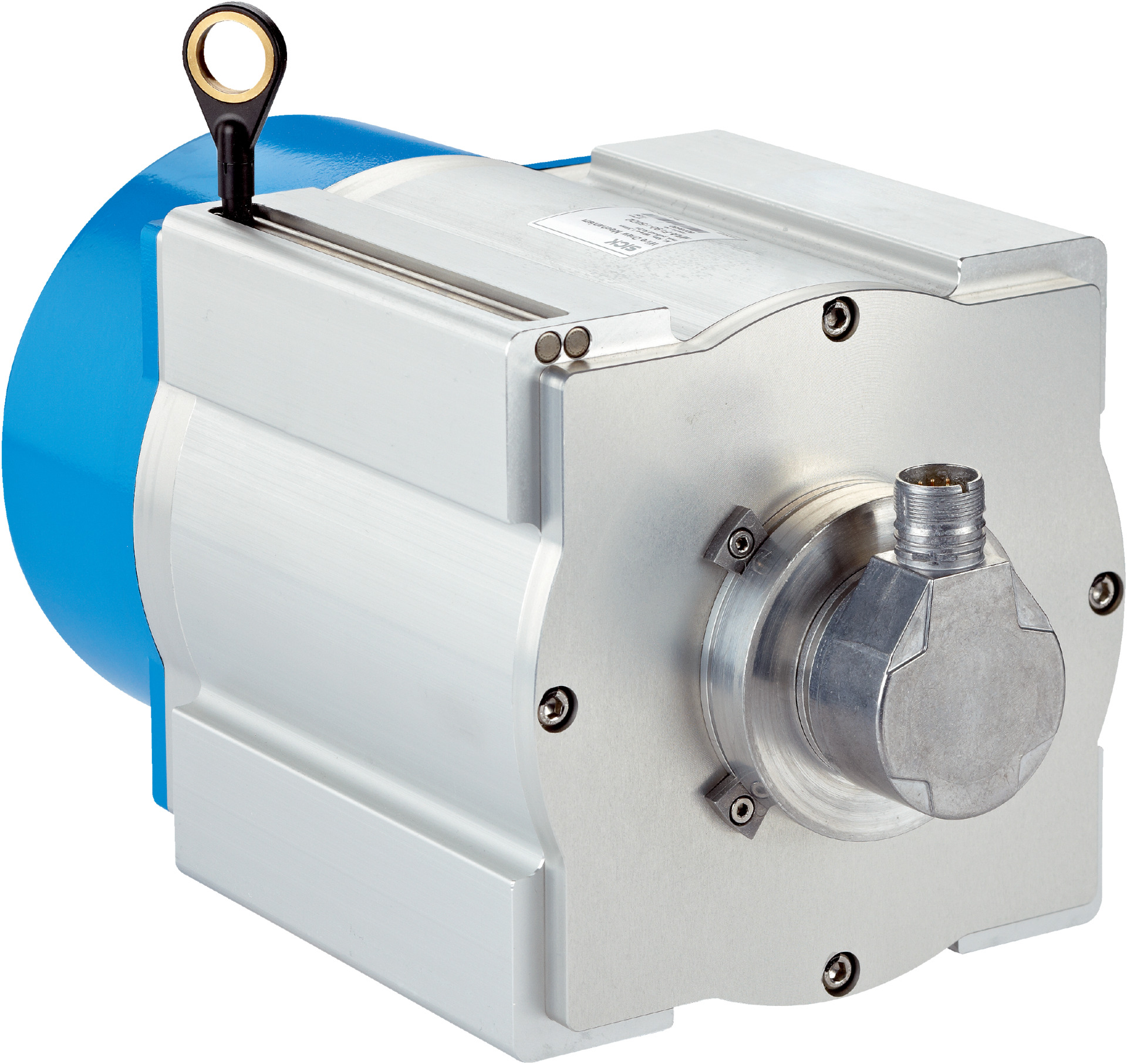

Wire Draw Encoder PRF19-A1AM5010 | 50 m Measurement Range | 0.05 mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder PRF19-A1AM5010 offers a measurement range of up to 50 m with a high resolution of 0.05 mm, making it ideal for industrial automation and safety systems. Designed for precise linear displacement measurement, it features robust aluminum housing and operates efficiently in temperatures from -30 °C to +70 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF19-A1AM5010 | 50 m Measurement Range | 0.05 mm Resolution | IP67 Rated | by SICK
Brand: SICK
SKU: 1034328
Alternatively Known As: Wire Draw Encoder, Incremental Wire Encoder, Linear Position Sensor, Safety Wire Draw Encoder
Technical Specifications
- Measurement range: 0 m to 50 m
- Encoder type: Incremental encoders
- Resolution: 0.05 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31, mounted mechanic IP67
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 16.8 kg
Key Features
- Measurement range up to 50 m
- High resolution of 0.05 mm
- Repeatability ≤ 5 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 10 mm
- Programmable and configurable encoder settings
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating speed up to 4 m/s
- IP31 enclosure rating, IP67 for mounted mechanic
- Wide operating temperature range from –30 °C to +70 °C
- Low power consumption ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related measurement devices and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems
- Measurement and control of linear displacement
- Machine safety monitoring and position feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Low power consumption minimizes energy use
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF19-A1AM5010 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
