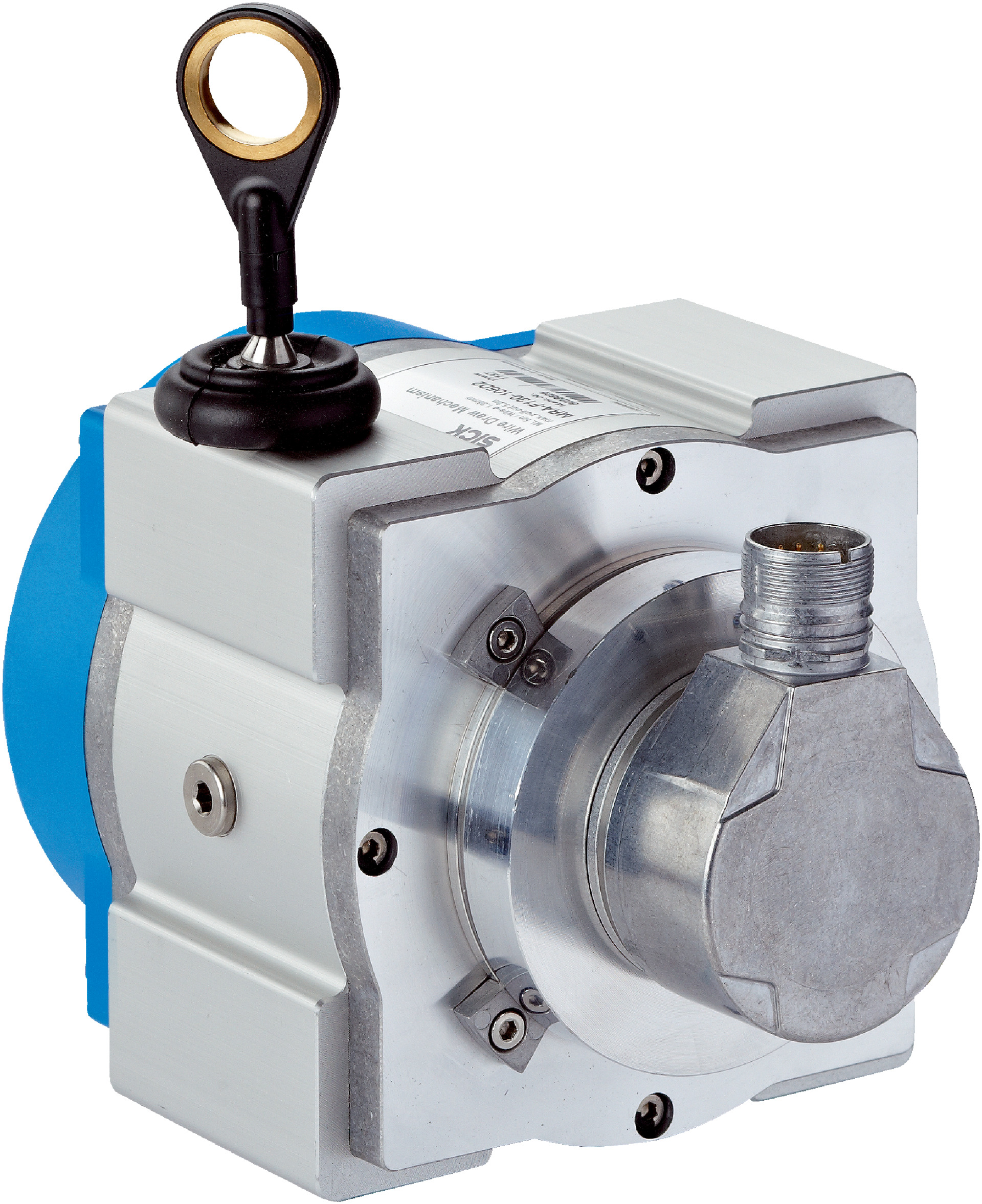

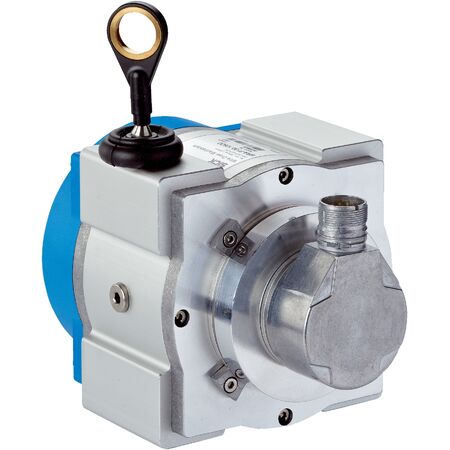

Wire Draw Encoder PRF13-A1AM0520 | 5m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder PRF13-A1AM0520 is designed for precise length measurement in industrial automation, featuring a measurement range of up to 5 meters and a high resolution of 0.03 mm. With its robust IP64/IP67 rated housing and a life expectancy of approximately 1,000,000 cycles, this encoder is perfect for applications requiring reliable performance and durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF13-A1AM0520 | 5m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034324
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Length Measurement Encoder, Incremental Wire Encoder
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / RS-422
- Programmable/configurable interface
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.1 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 300 years according to EN ISO 13849-1
- Measurement range up to 5 meters
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable incremental/TTL/RS-422 communication interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 15 N and 20 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation and safety-related measurement
- Position and length measurement in manufacturing processes
- Integration in machinery requiring precise wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- Compliance with RoHS ensures restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
