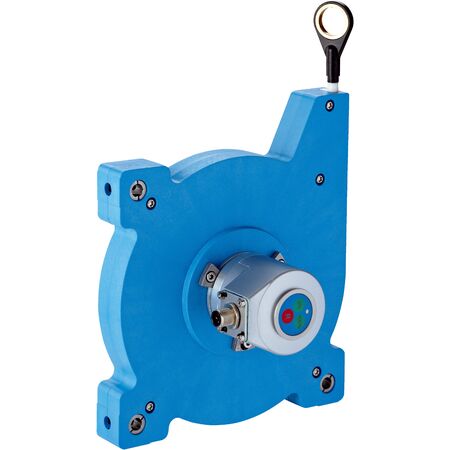

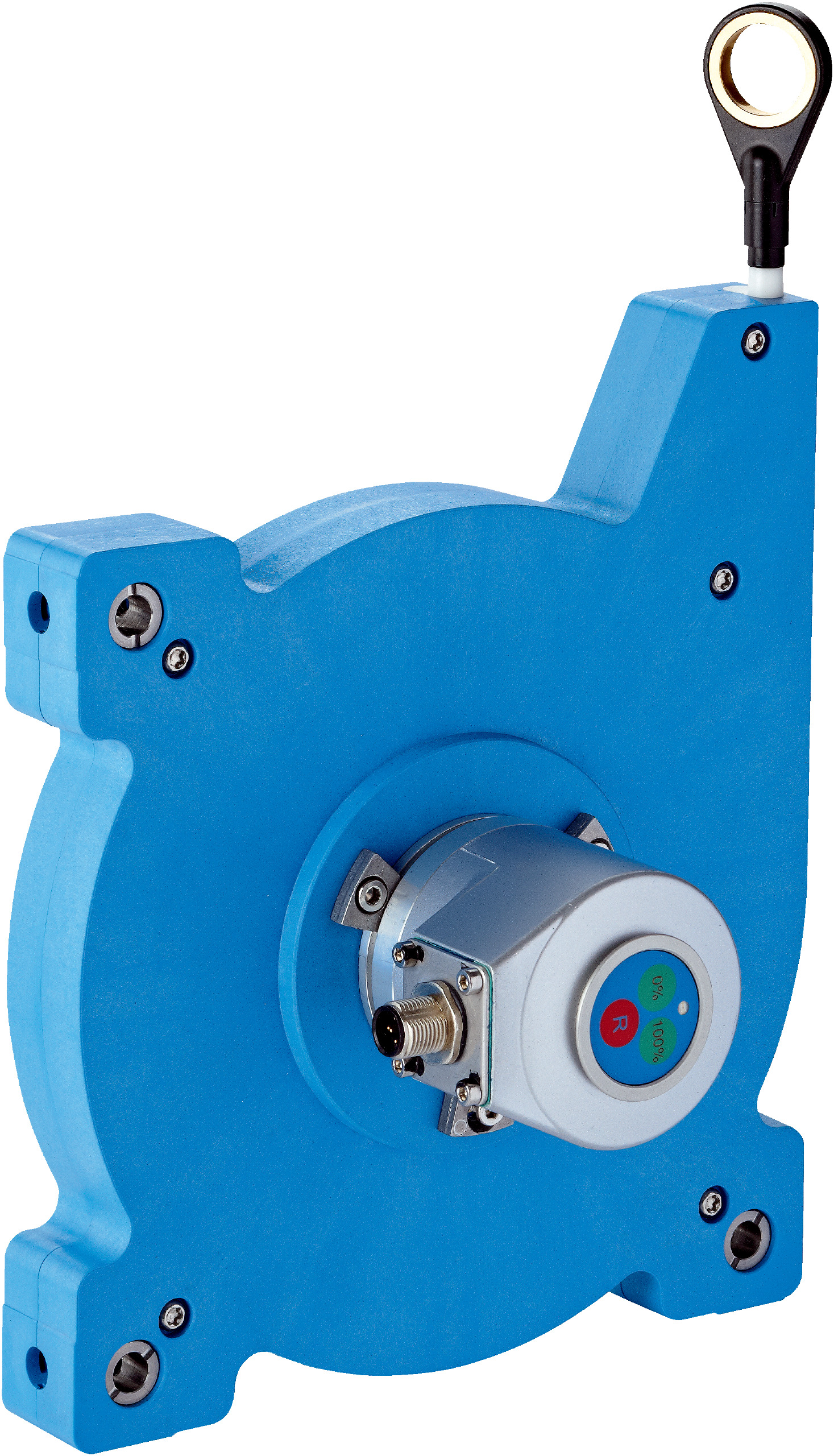

Wire Draw Encoder BCG19-K1EM10PP | Absolute Encoder | 0.05 mm Resolution | 10 m Measurement Range | by SICK
The Wire Draw Encoder BCG19-K1EM10PP is an absolute encoder designed for precise position measurement in industrial automation. With a high resolution of 0.05 mm and a measurement range of up to 10 m, it ensures reliable performance in safety-related applications. Built for durability, it features a highly flexible stainless steel measuring wire and operates efficiently within a temperature range of –30 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.05 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Current / 4...20 mA
- Connection type: Male connector, M12, 5-pin, radial
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder model: ACM60, ACM60B-S1KE13X06
- Enclosure rating: IP50, mounted mechanic IP67
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.3 kg
Key Features
- Absolute encoder with high resolution of 0.05 mm
- Measurement range up to 10 m
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Robust plastic Noryl housing for wire draw mechanism
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
- Communication via analog current 4...20 mA
- Supply voltage 18 V DC to 33 V DC with low operating current ≤ 80 mA
