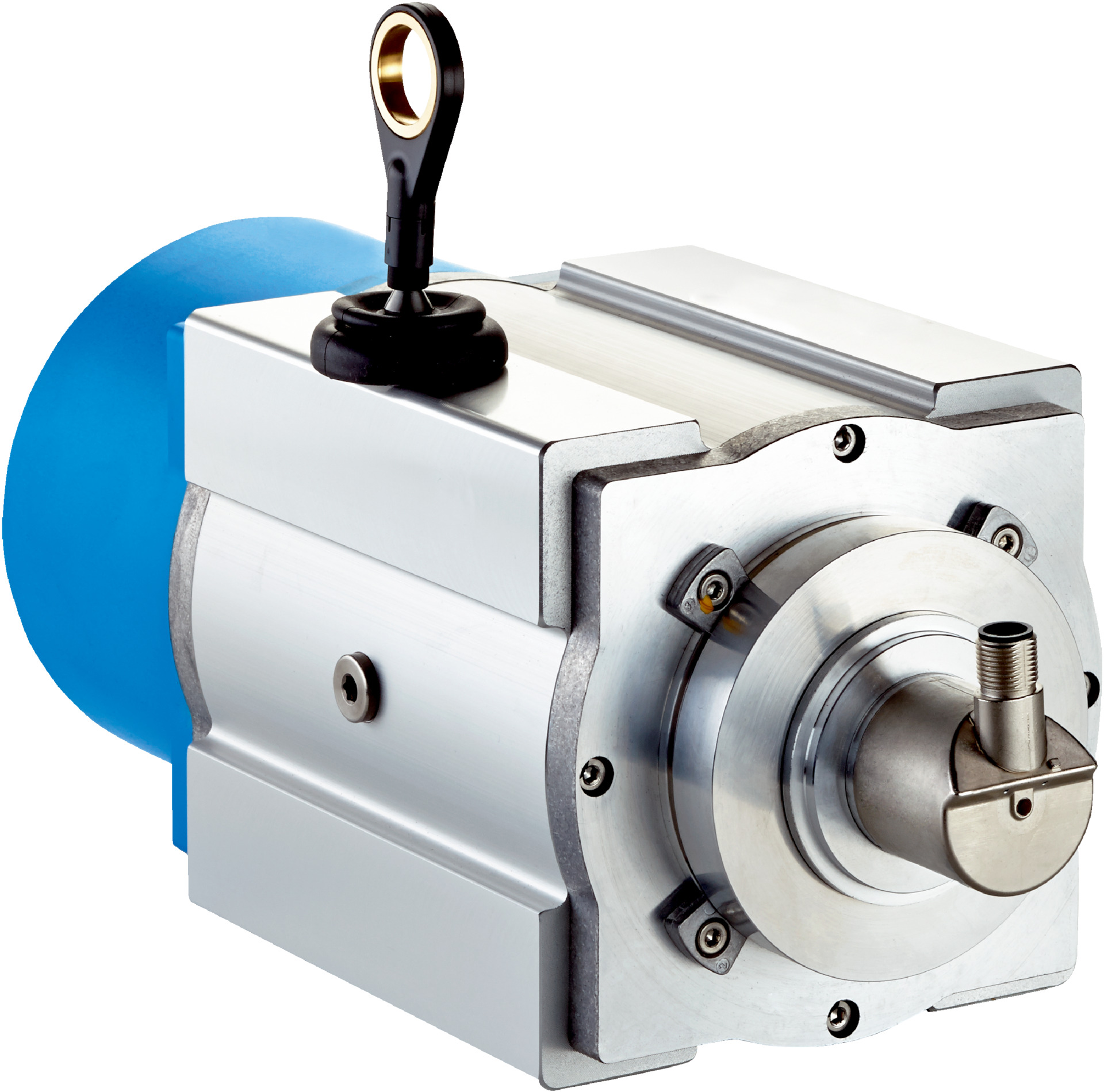

Wire Draw Encoder | Absolute Encoder Sensor | 0.02 mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder is an absolute encoder sensor designed for precise linear measurement in industrial automation. With a high resolution of 0.02 mm and repeatability of ≤ 2 mm, it ensures accurate position feedback in manufacturing machinery. Built for durability with an IP64 to IP67 rating, this encoder operates efficiently in temperatures ranging from –20 °C to +70 °C, making it ideal for safety-related monitoring in automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Wire acceleration: 30 m/s²
- Operating speed: 6 m/s
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Mounted encoder model: AHM36 IO-Link Advanced
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: –20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Special device with pre-mounted joint ball 5318683
- Absolute encoder with IO-Link communication interface
- High resolution of 0.02 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Operating temperature range from –20 °C to +70 °C
- Spring return force between 10 N and 20 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration of the encoder sensor.
Applications
- Industrial automation for precise linear measurement
- Position feedback in manufacturing machinery
- Safety-related monitoring in automated systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF13-Q1RM2S01 is available for immediate purchase, ideal for industrial automation and safety-related applications.
