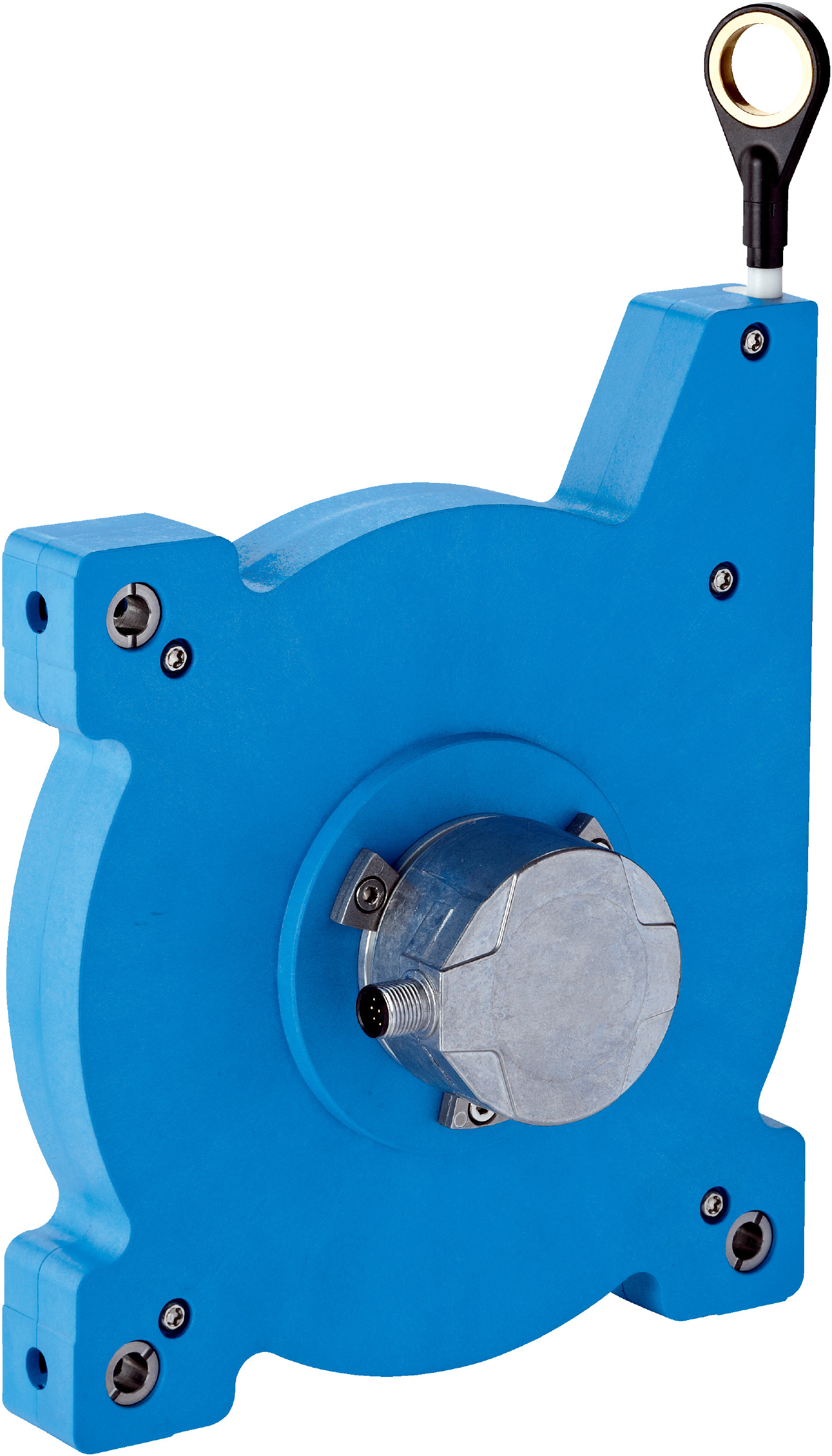

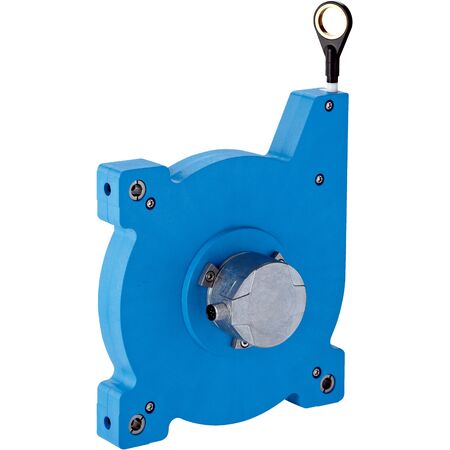

Wire Draw Encoder | Absolute Encoder Sensor | 10m Measurement Range | 0.14mm Resolution | by SICK
The Wire Draw Encoder is designed for precise linear measurement in industrial automation, featuring a measurement range of up to 10 meters and a high resolution of 0.14 mm. With an absolute encoder and SSI communication interface, it ensures reliability in safety-related applications, making it ideal for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.14 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (main unit), IP67 (mounted mechanic)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 150mm x 150mm
- Weight: 2.2 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 10 meters
- High resolution of 0.14 mm and repeatability ≤ 0.2 mm
- Robust plastic Noryl housing with stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Long wire draw mechanism life of approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Enclosure rating IP50 for main unit, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BCG19-A1CM1007 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
