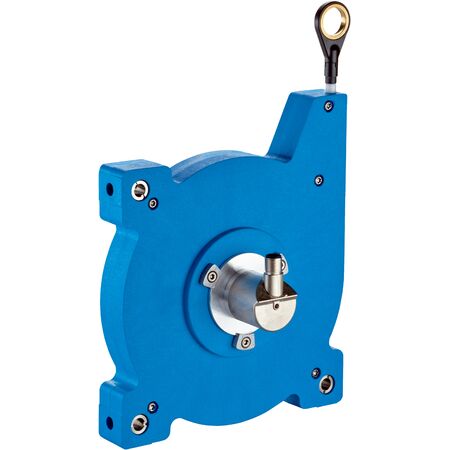

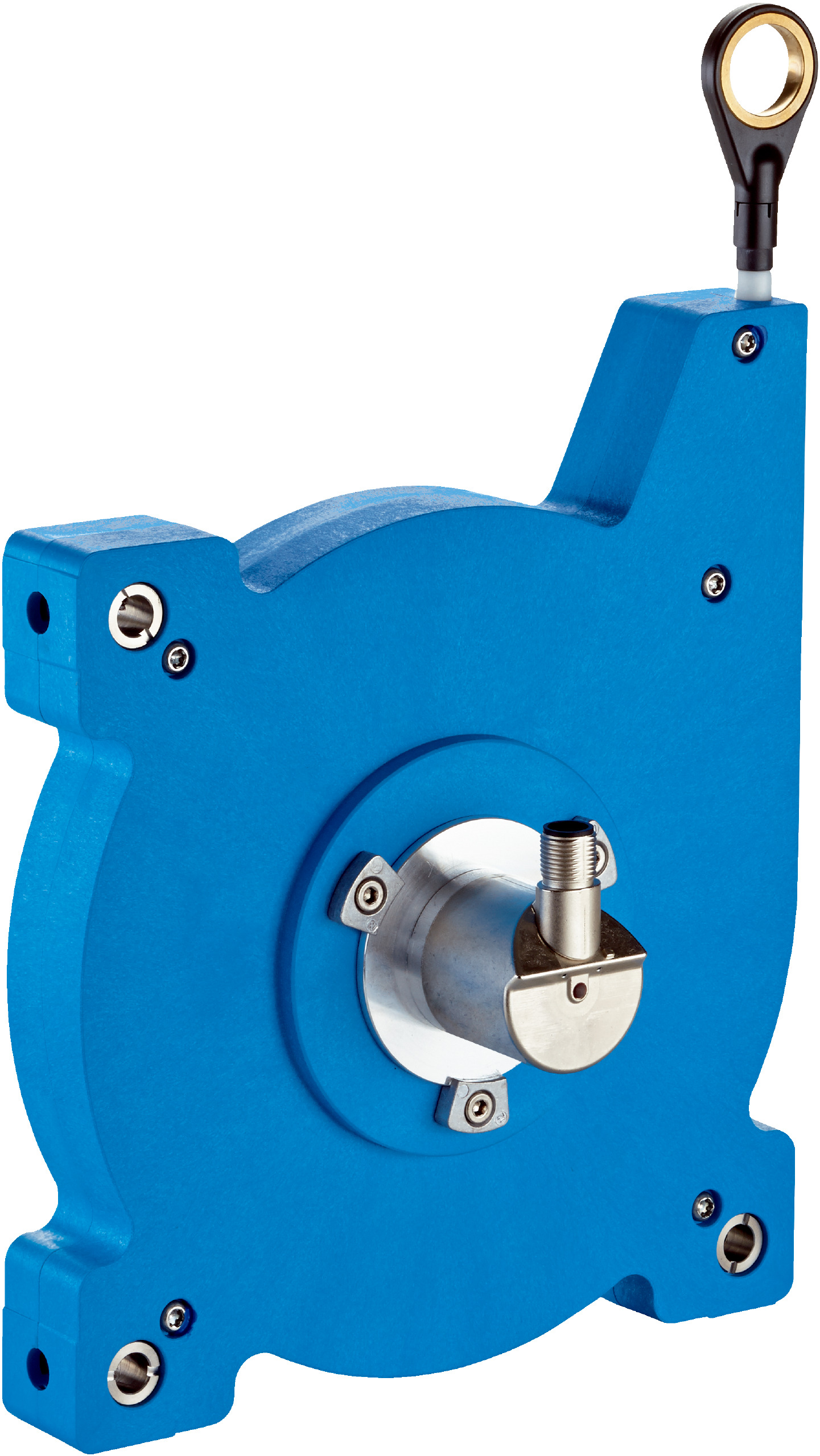

Wire Draw Encoder | Absolute Encoder with High Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCG19-C1QM10S1 offers precise linear measurement with an absolute encoder type and a high resolution of 0.03 mm. Ideal for industrial automation and position feedback in machinery, it features robust construction and high protection ratings, ensuring reliability in safety-related applications. With a wide operating temperature range from -30 °C to +70 °C, this encoder is built for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoder
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401, V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Protection rating: IP50 device, IP66 mounted mechanic, IP67 encoder
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.02 kg
Key Features
- Encoder mounted on the opposite side of the wire draw mechanism compared to standard models
- Preset baudrate of 250 kbit/s for communication
- Absolute encoder with high resolution of 0.03 mm
- Repeatability of ≤ 0.2 mm and linearity of ≤ ± 2 mm
- Programmable and configurable via CANopen interface
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- High protection ratings: IP50 for device, IP66 for mounted mechanic, IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise linear measurement
- Position feedback in machinery and equipment
- Safety-related applications requiring high reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG19-C1QM10S1 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
