Wire Draw Encoder BTF13-Q1RM2061 | Absolute Encoder | IO-Link V1.1 | 20m Measurement Range | by SICK

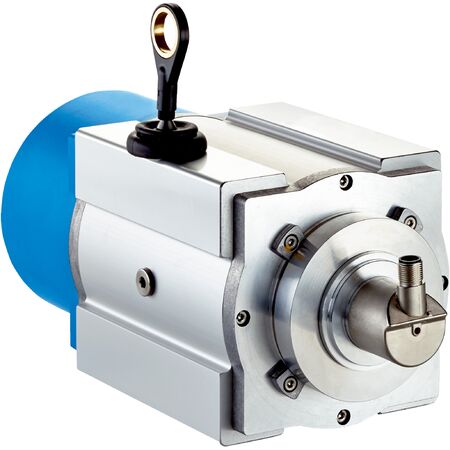

The Wire Draw Encoder BTF13-Q1RM2061 is an absolute encoder designed for precise wire length measurement in industrial automation. With a high measurement range of up to 20 meters and a resolution of 0.08 mm, it ensures reliable feedback for machine monitoring and control systems. Built to withstand harsh environments, it features an IP64/IP65 rated housing and operates effectively in temperatures from -20 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.08 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Enclosure rating: IP64 (mechanic IP65)
- Operating temperature range: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement range up to 20 meters
- High resolution of 0.08 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64/IP65 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical wiring standards to ensure safety and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM2061 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
