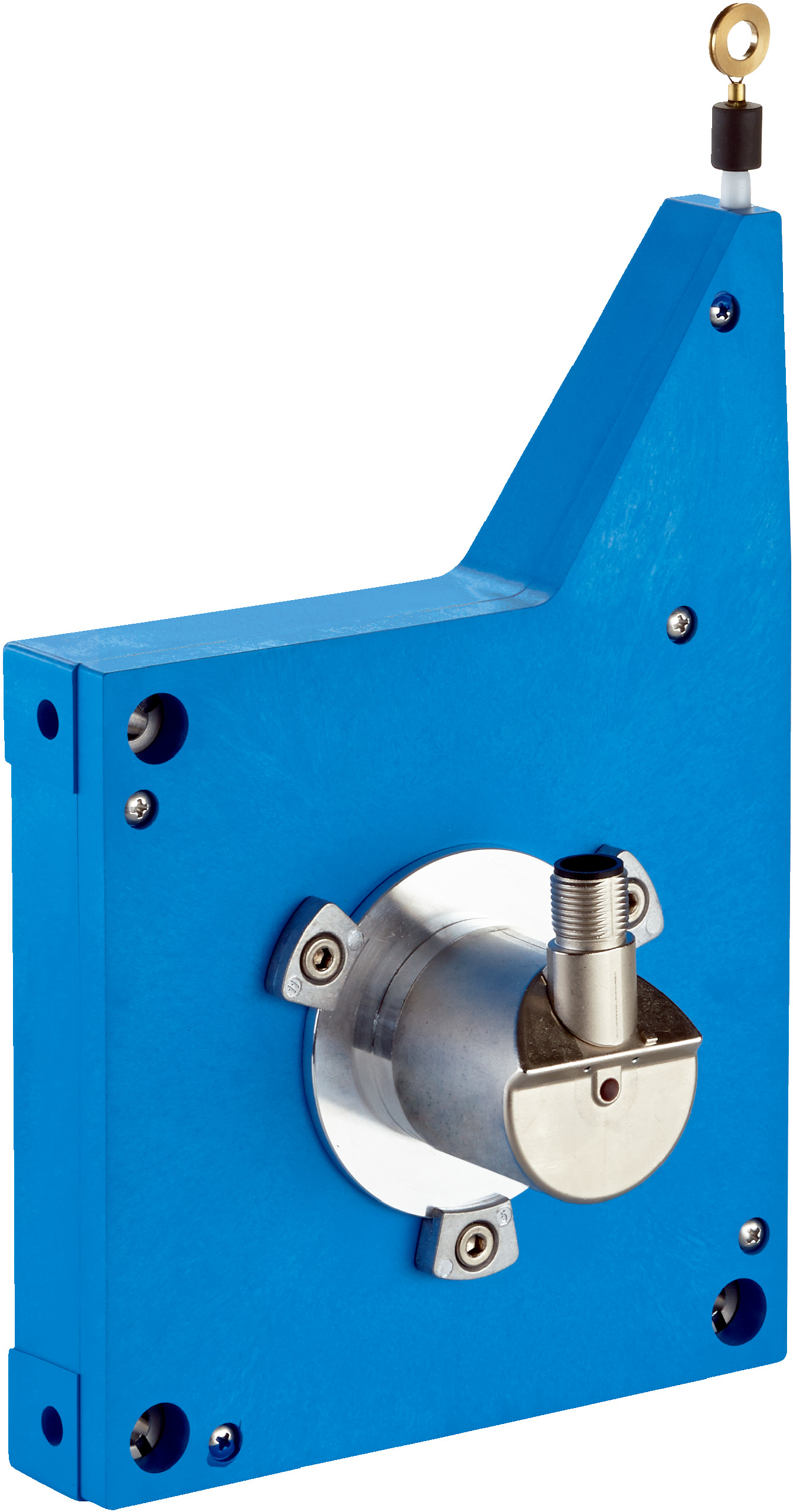

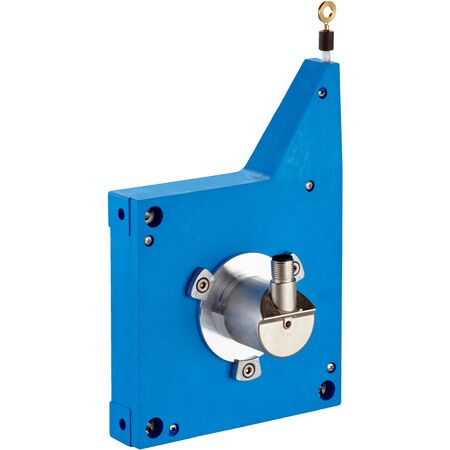

Wire Draw Encoder | Absolute Position Feedback | 0.02 mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCG13-C1QM05S4 offers absolute position feedback with a measurement range of up to 5 meters and a high resolution of 0.02 mm. Designed for industrial automation, this encoder features a robust construction and operates efficiently in temperatures from -30 °C to +70 °C. Ideal for machine tool feedback systems and robotics, it ensures precise wire draw measurement with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (device), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.92 kg
Key Features
- Customized Encoder AHM36A-S3CC000S04 with baudrate factory set to 250kbit/s
- Absolute encoder technology for precise position feedback
- Measurement range up to 5 meters
- High resolution of 0.02 mm with repeatability ≤ 0.2 mm
- CANopen communication interface, programmable and configurable
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with mounted mechanic rated IP66 and encoder rated IP67
- Low power consumption ≤ 1.5 W (without load)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and industrial encoder setup to ensure proper configuration and safety.
Applications
- Industrial automation for precise position measurement
- Machine tool feedback systems
- Robotics and conveyor systems requiring accurate wire draw measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-C1QM05S4 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
