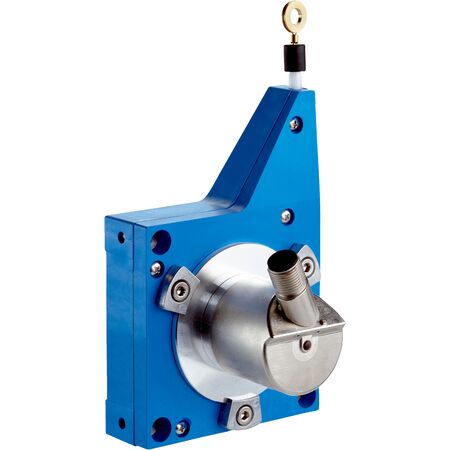

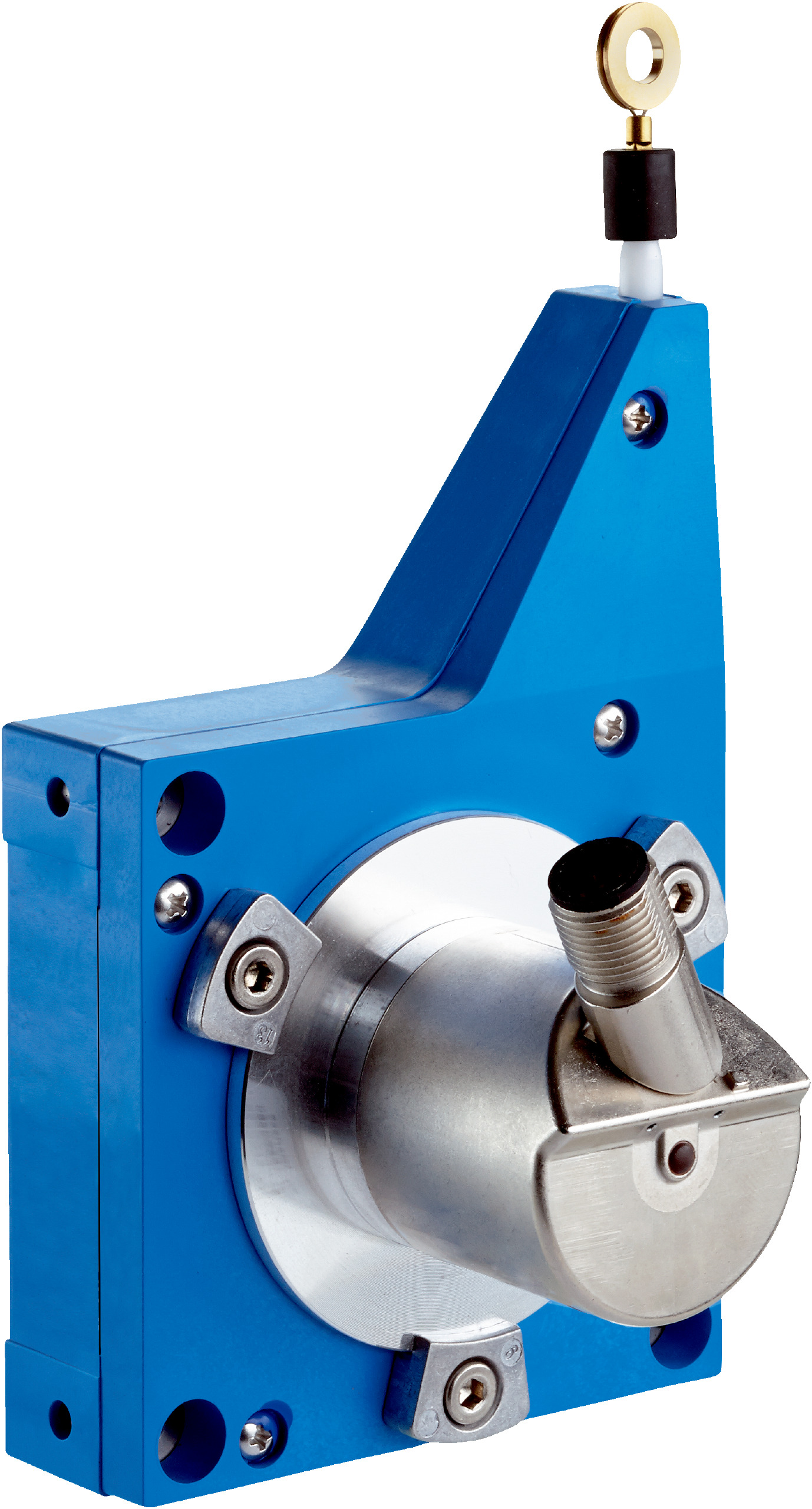

Wire Draw Encoder | Absolute Sensor with CANopen | 0.03 mm Resolution | 3 m Measurement Range | by SICK
The Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of up to 3 meters and a high resolution of 0.03 mm. With its robust construction and CANopen communication interface, this encoder is ideal for machine tool monitoring, robotics, and safety-related applications, ensuring reliable feedback and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 3.3 N to 4.4 N
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (device), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.37 kg
Key Features
- Absolute encoder with CANopen communication interface
- High resolution of 0.03 mm with repeatability ≤ 0.2 mm
- Measurement range up to 3 meters
- Programmable and configurable for versatile use
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with mounted mechanic IP66 and encoder IP67
- Spring return force between 3.3 N and 4.4 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine tool monitoring and control
- Robotics and automated manufacturing systems
- Safety-related applications requiring reliable feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-C1QM03S01 is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
