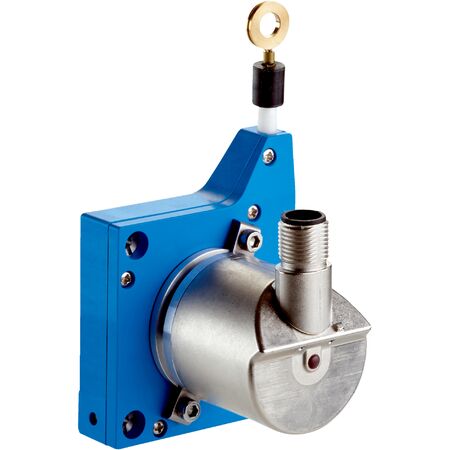

Wire Draw Encoder BCG05-A1NMS02 | 0.02 mm Resolution | SSI Communication | IP67 Protection | by SICK
The Wire Draw Encoder BCG05-A1NMS02 offers high precision with a measurement range of 0 m to 1.25 m and a resolution of 0.02 mm, making it ideal for industrial automation and safety-related applications. Designed for reliability, it features an SSI communication interface and operates within a temperature range of –30 °C to +70 °C, ensuring optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin, universal
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 (V4A)
- Spring return force: 1 N to 1.4 N
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.2 kg
Key Features
- Special device without wire coating with Firmware 1.03
- Absolute encoder with SSI communication interface
- High measurement resolution of 0.02 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP66 mounted mechanic and IP67 encoder protection
- Spring return force between 1 N and 1.4 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
