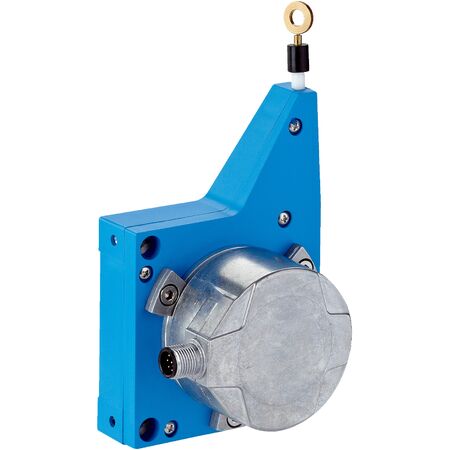

Wire Draw Encoder BCG08-A1CM0336 | Absolute Encoder with SSI | 0.03 mm Resolution | 3 m Measurement Range | by SICK
The Wire Draw Encoder BCG08-A1CM0336 is an absolute encoder designed for precise position measurement in industrial automation. With a high resolution of 0.03 mm and a measurement range of up to 3 meters, it ensures reliable performance in safety-related applications. Built with a robust stainless steel measuring wire and an IP50 enclosure rating, this encoder is perfect for machine monitoring and control systems, providing durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder BCG08-A1CM0336 | Absolute Encoder with SSI | 0.03 mm Resolution | 3 m Measurement Range | by SICK
Brand: SICK
SKU: 1054131
Alternatively Known As: Wire Draw Encoder, Cable Extension Encoder, Position Sensor, Absolute Encoder with SSI
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 (V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 10 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: AFM60 SSI
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.55 kg
Key Features
- Absolute encoder with SSI communication interface
- High resolution of 0.03 mm with repeatability ≤ 0.2 mm
- Robust measuring wire made of highly flexible stainless steel
- Long measuring range up to 3 meters
- Spring return force between 3.3 N and 4.4 N
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
- Low power consumption ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-A1CM0336 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
