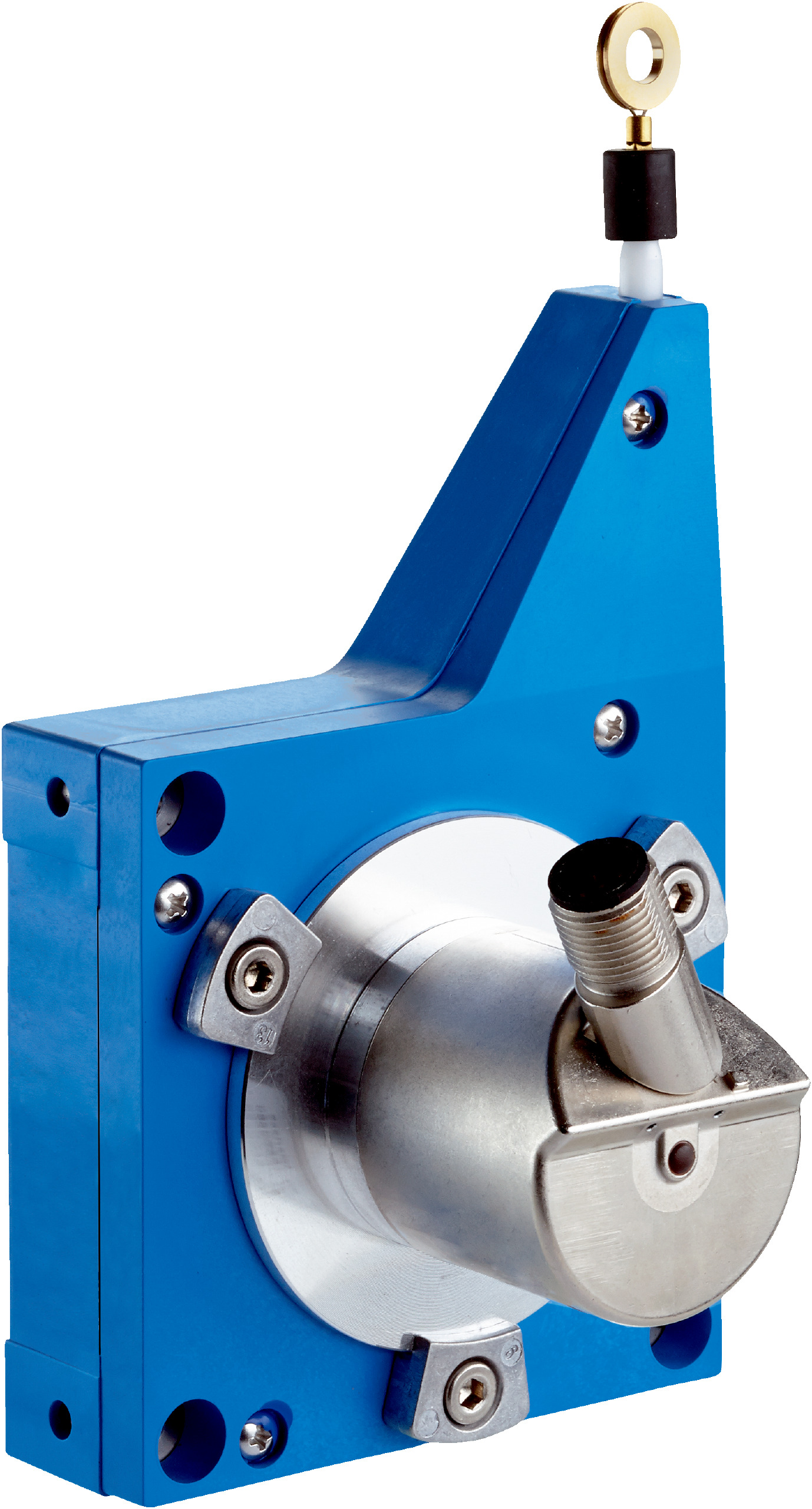

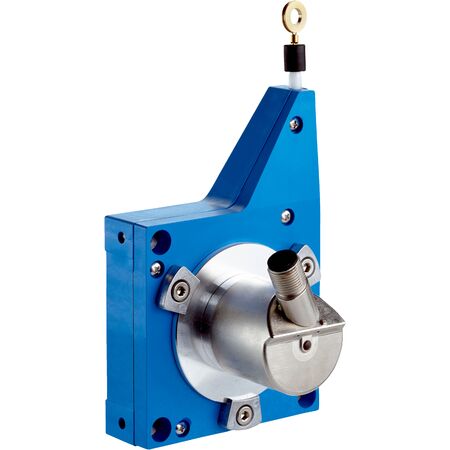

Wire Draw Encoder BCG08-J1QM0364 | 0.01 mm Resolution | 3 m Measurement Range | IP67 Rated | by SICK
The Wire Draw Encoder BCG08-J1QM0364 offers precise wire length measurement with a high resolution of 0.01 mm and a measurement range of up to 3 meters. Designed for industrial automation and safety-related applications, it features robust construction with stainless steel measuring wire and operates efficiently in temperatures from -30 °C to +70 °C. With an IP67 rating, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 270 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Resolution (wire draw + encoder): 0.01 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Mounted encoder: AHM36 SAE J1939
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.37 kg
Key Features
- Absolute encoder with high resolution of 0.01 mm
- Measurement range up to 3 meters
- High repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 3.3 N and 4.4 N
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Communication via SAE J1939 interface
- Programmable and configurable
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial automation equipment to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-J1QM0364 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
