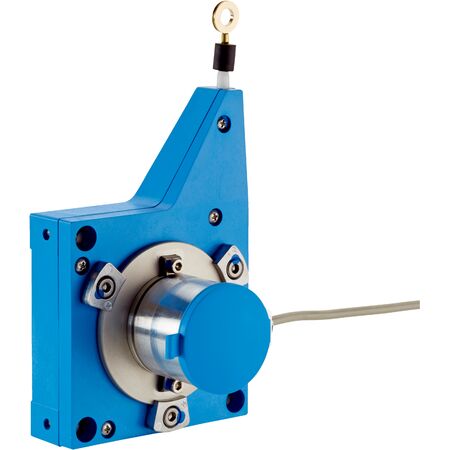

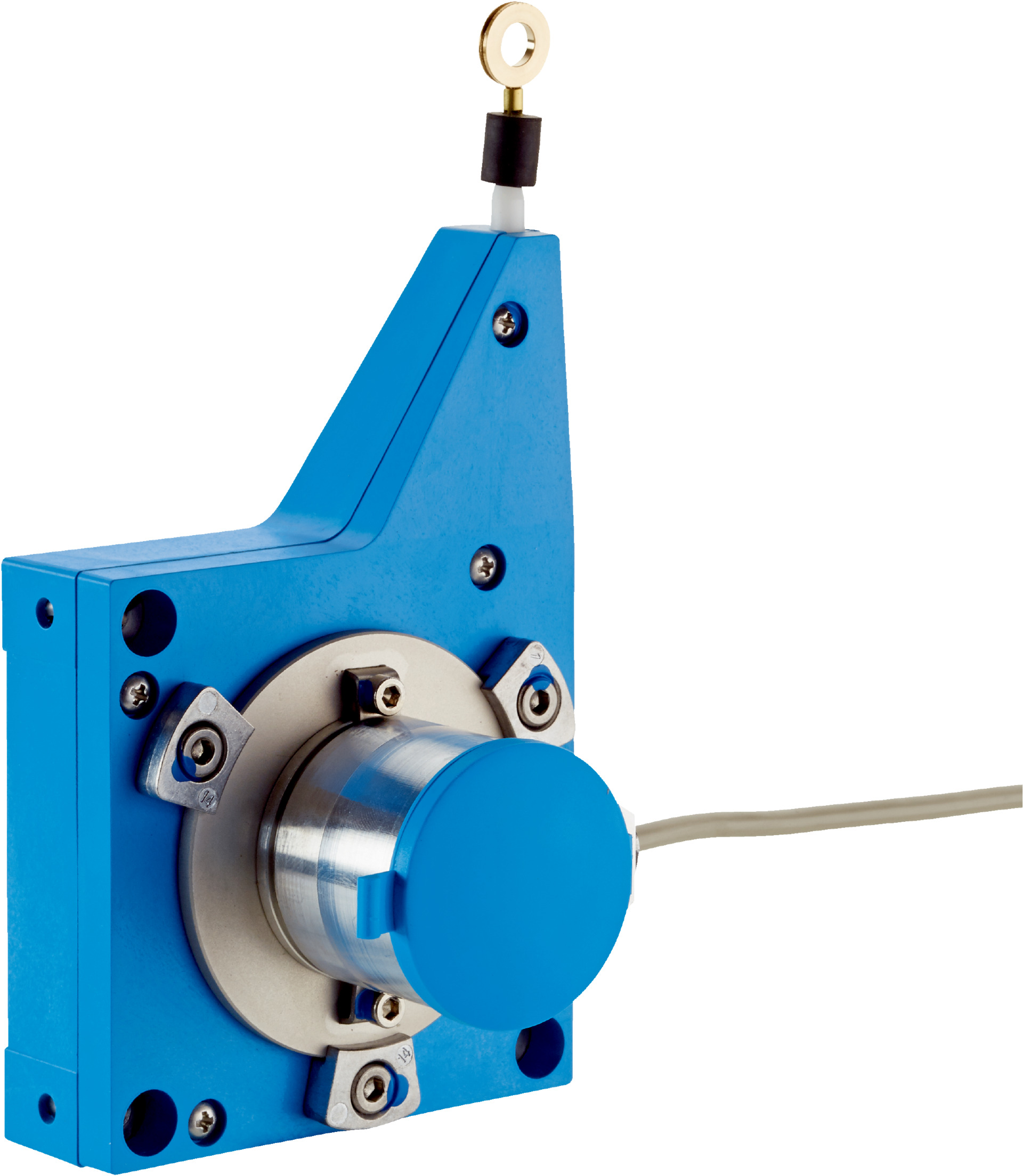

Wire Draw Encoder BCG08-K1KM03PP | 0-3m Measurement Range | 0.08mm Resolution | IP65 Rated | by SICK
The Wire Draw Encoder BCG08-K1KM03PP offers a measurement range of 0 m to 3 m with an impressive resolution of 0.08 mm, making it ideal for industrial automation and safety-related applications. Designed for precise length measurement, this absolute encoder features a robust plastic housing and a highly flexible stainless steel measuring wire, ensuring reliability and durability in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.08 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Current / 4...20 mA
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 10 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: ACM36, ACM36-K1K0-K01
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50 (device), IP65 (mounted mechanic)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.35 kg
Key Features
- Measurement range of 0 m to 3 m
- Absolute encoder for accurate position feedback
- High resolution of 0.08 mm
- Repeatability of ≤ 0.2 mm
- Linearity of ≤ ± 2 mm
- Hysteresis of ≤ 0.4 mm
- Analog current output (4...20 mA)
- Highly flexible stranded stainless steel measuring wire
- Robust plastic Noryl housing for wire draw mechanism
- Spring return force between 3.3 N and 4.4 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating IP50 for device, IP65 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 80 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG08-K1KM03PP Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
