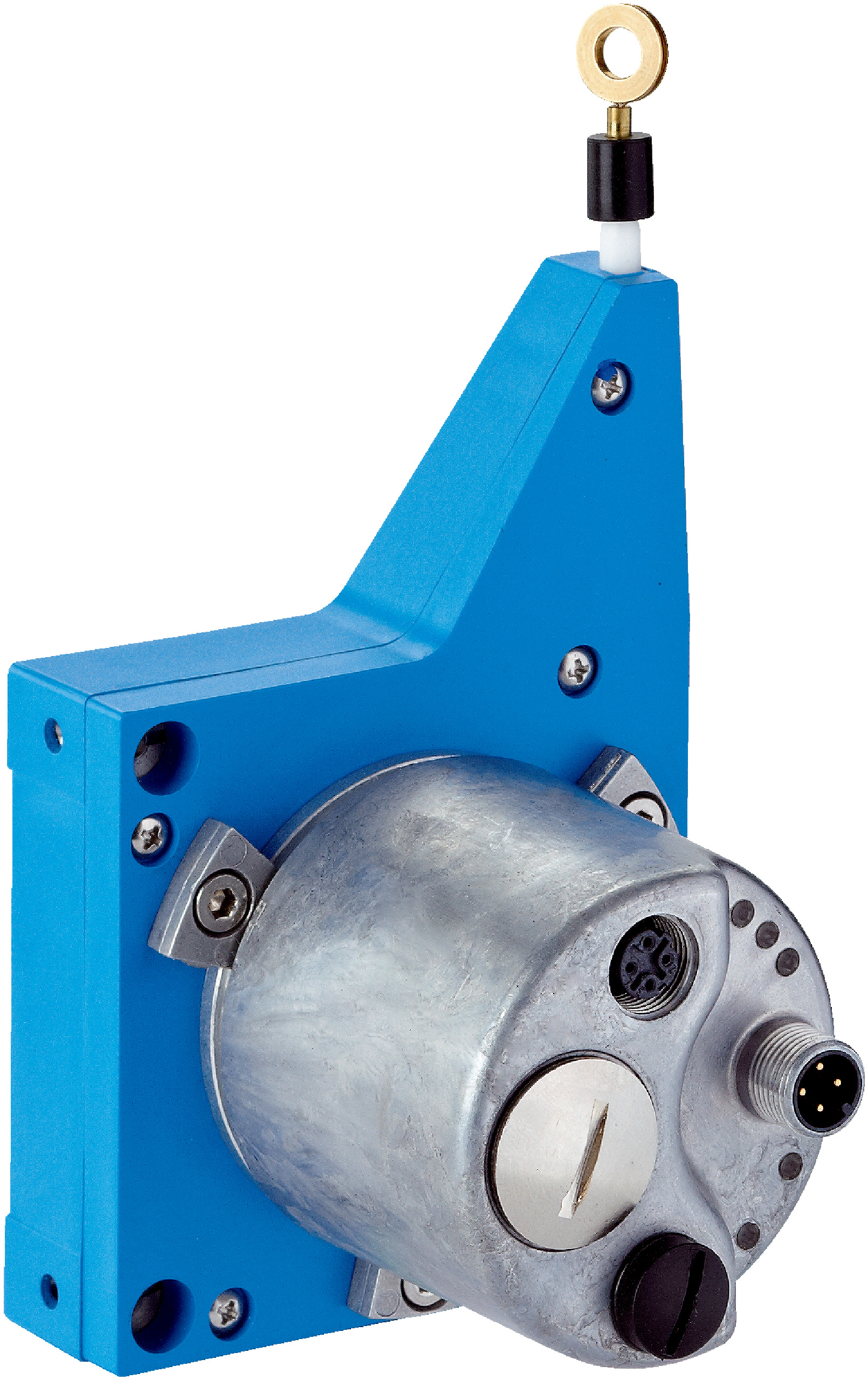

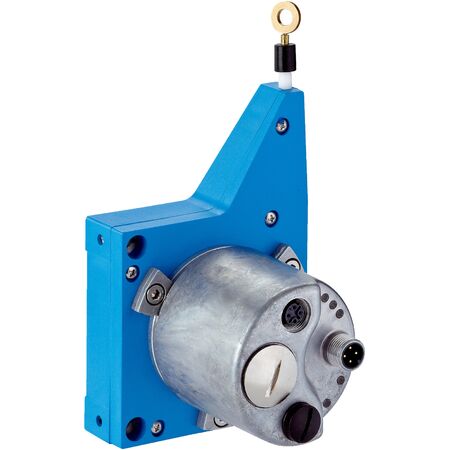

Wire Draw Encoder BCG08-N1BM0399 | 0.001 mm Resolution | PROFINET Communication | IP50 Rated | by SICK
The Wire Draw Encoder BCG08-N1BM0399 offers precise position measurement with a high resolution of 0.001 mm and a measurement range of up to 3 meters. Designed for industrial automation, it features robust mechanics and a PROFINET communication interface, making it ideal for machine monitoring and safety-related applications. With a durable design and low power consumption, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Enclosure rating: IP50 (mounted mechanic IP67, Encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.45 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 3 meters
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFINET communication interface
- Robust mechanics with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from -30 °C to +70 °C
- High durability with typical 1,000,000 cycles life for wire draw mechanism
- Spring return force between 3.3 N and 4.4 N
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and PROFINET network configuration to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Machine monitoring and control systems
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BCG08-N1BM0399 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
