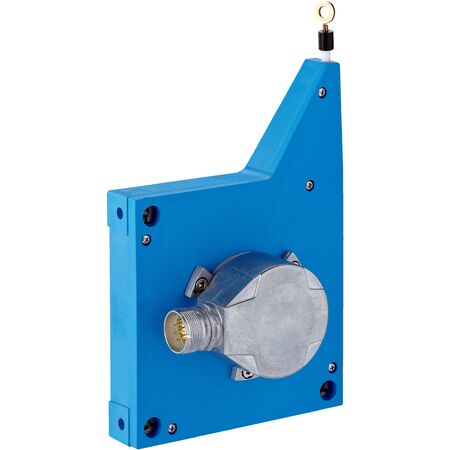

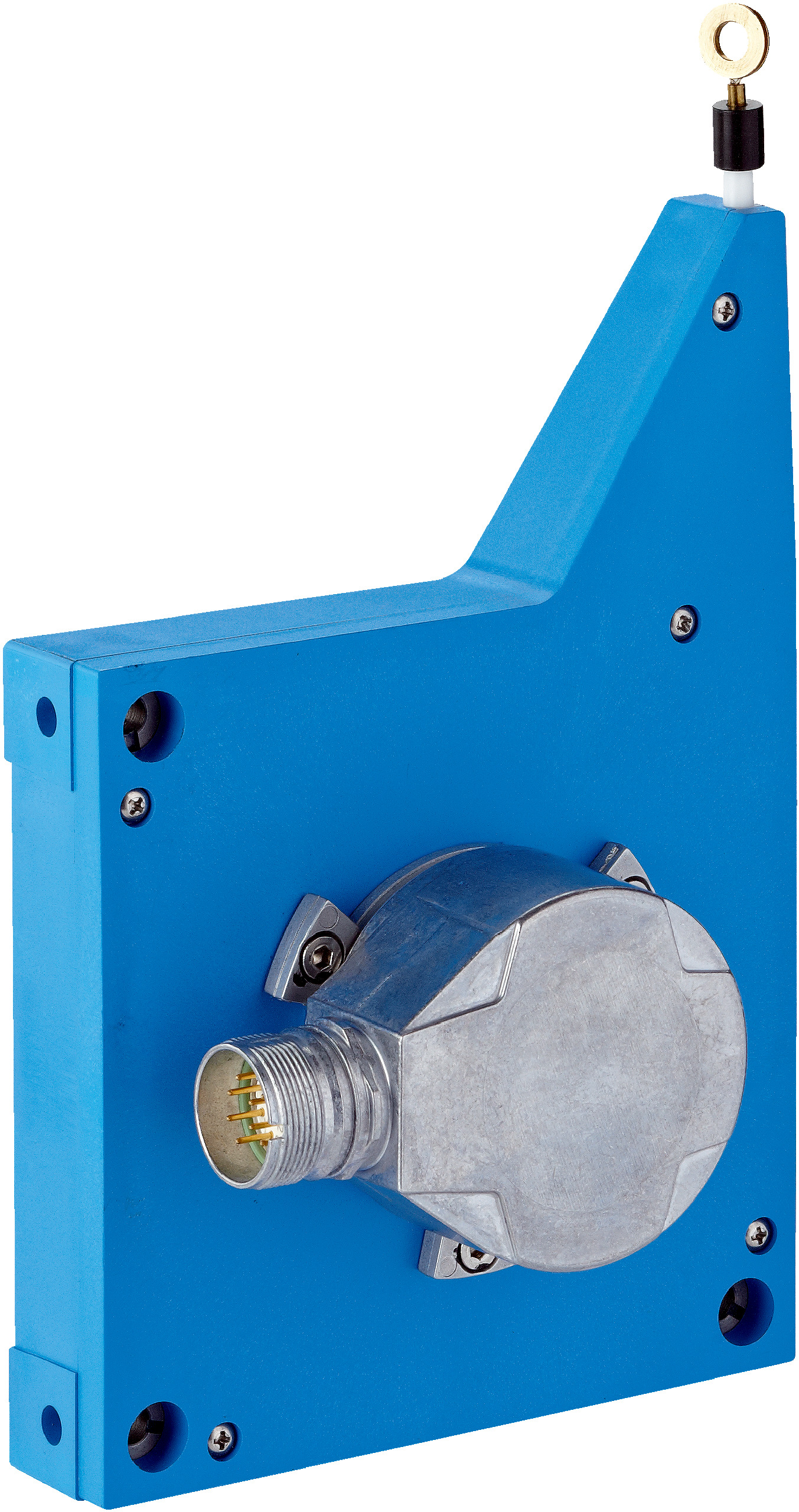

Wire Draw Encoder BCG13-A1AM0511 | SSI Communication | 5m Measurement Range | 0.09mm Resolution | by SICK
The Wire Draw Encoder BCG13-A1AM0511 is designed for precise linear measurement in industrial automation, featuring a measurement range of up to 5 meters and a high resolution of 0.09 mm. With its robust plastic housing and stainless steel measuring wire, this encoder ensures reliability in safety-related applications, making it ideal for position feedback in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.09 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Operating temperature range: 0 °C to +70 °C
- Enclosure rating: IP50 (device), IP67 (mounted mechanic)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 80mm x 150mm x 130mm
- Weight: 1.1 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 5 meters
- High resolution of 0.09 mm with repeatability ≤ 0.2 mm
- Robust plastic Noryl housing with stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from 0 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating IP50 for the device, IP67 for mounted mechanic
