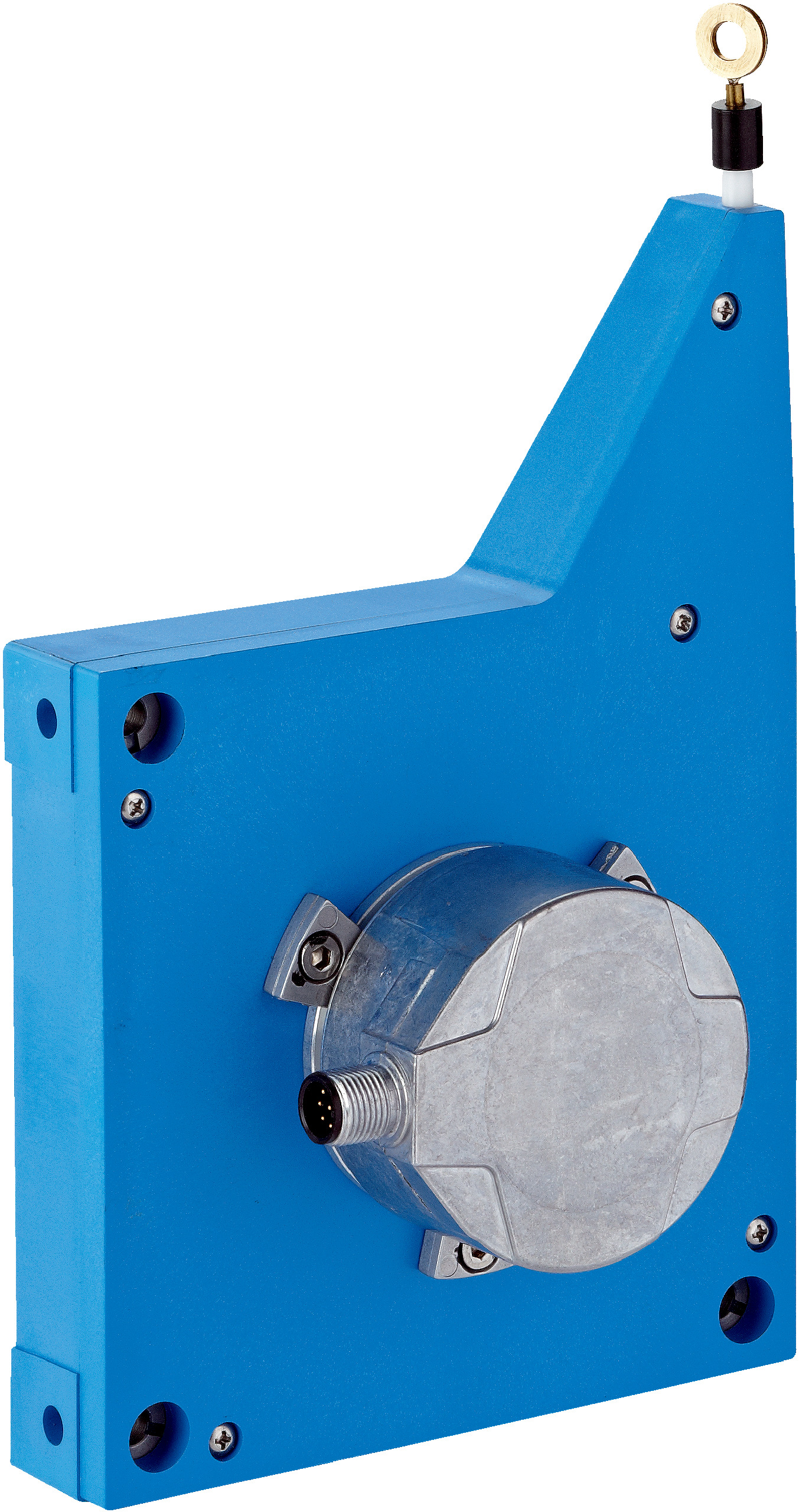

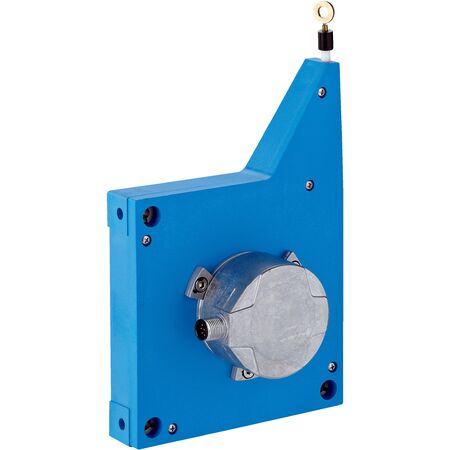

Wire Draw Encoder BCG13-A1CM0521 | 5m Measurement Range | 0.05mm Resolution | IP50 Enclosure | by SICK
The Wire Draw Encoder BCG13-A1CM0521 offers a measurement range of up to 5 meters with a high resolution of 0.05 mm, making it ideal for precise length measurement in industrial automation. Designed for safety-related applications, this encoder features robust construction with a stainless steel measuring wire and operates efficiently in temperatures from -30 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.05 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 4 m/s²
- Operating speed: 3 m/s
- Mounted encoder model: AFM60 SSI
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67)
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 1.1 kg
Key Features
- Measurement range up to 5 meters
- High resolution of 0.05 mm with absolute encoder
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with mounted mechanic rated at IP67
- Low power consumption ≤ 0.7 W
- Communication via SSI interface
