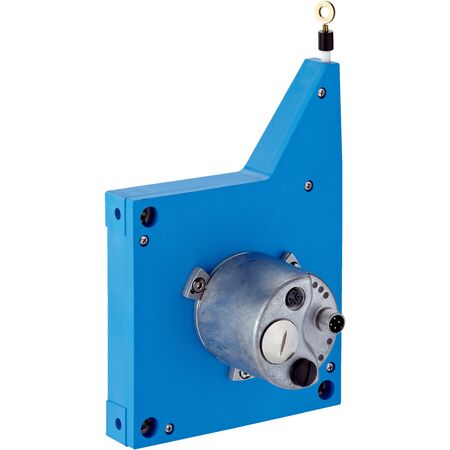

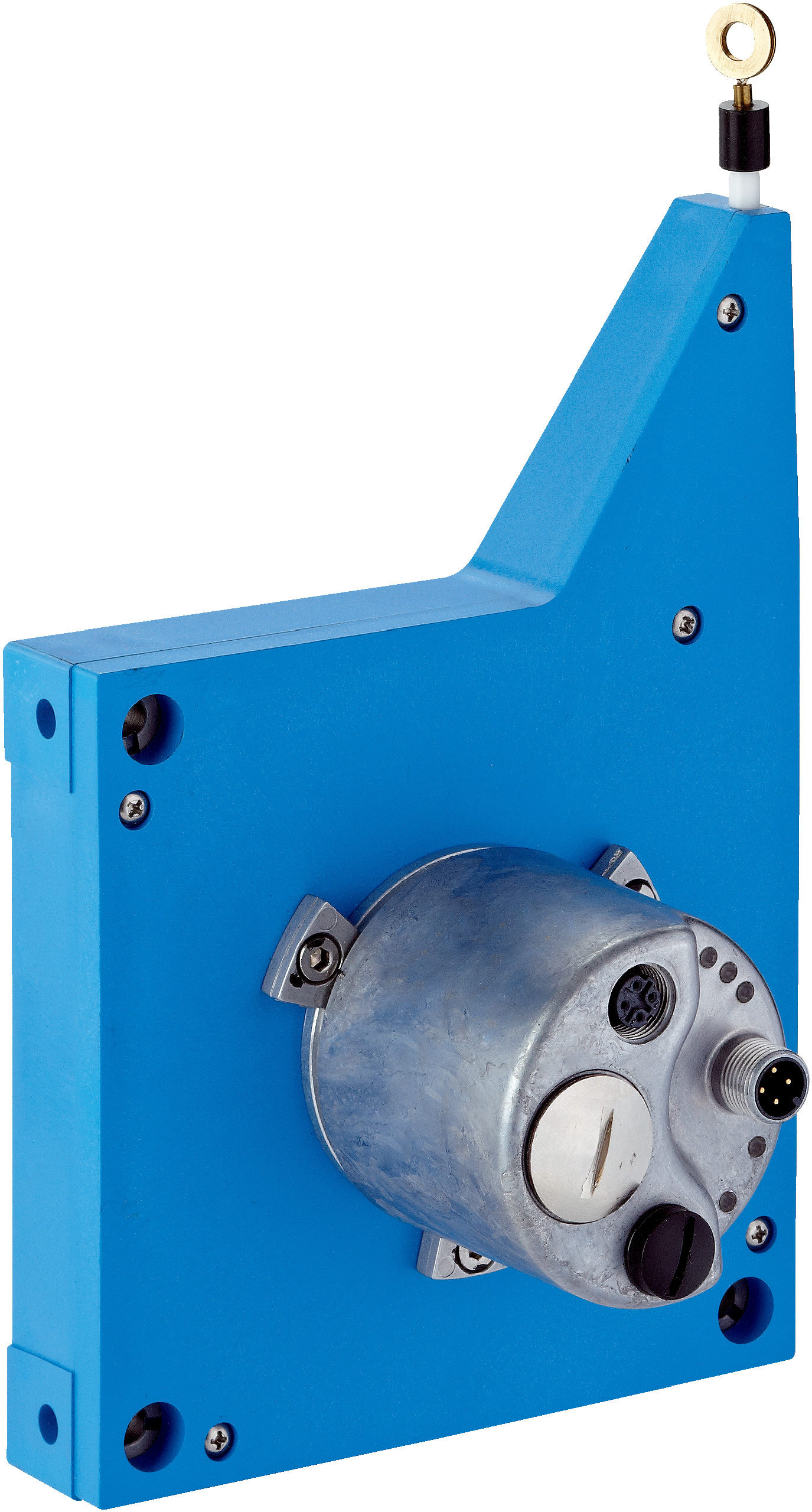

Wire Draw Encoder BCG13-N1BM0599 | Absolute Encoder | 0.001 mm Resolution | PROFINET Communication | by SICK
The Wire Draw Encoder BCG13-N1BM0599 features an impressive measurement range of up to 5 meters and an absolute resolution of 0.001 mm, making it ideal for industrial automation and precise position measurement. With a robust design and compliance with PROFINET communication standards, this encoder ensures high reliability and performance in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 5 meters
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFINET communication interface
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from -30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating IP50 for mounted mechanic and IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET communication and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
- Measurement and control in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy efficiency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-N1BM0599 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
